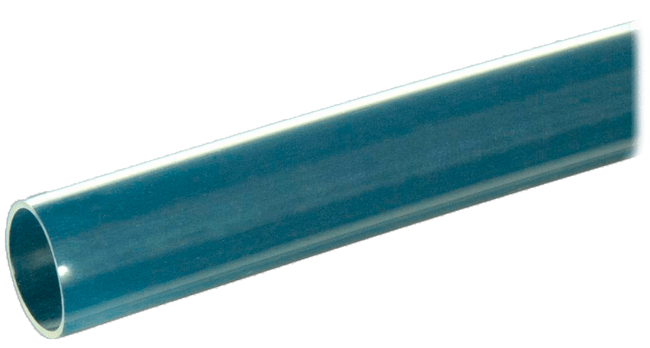

FEP Industrial, Heavy Wall & Metric Tubing - Series 103/203

Brand: Parker Hannifin

FEP tubing is used when you need chemical resistant tubing and long continuous lengths or very clear fluoropolymer tubing.

FEP tubing can be supplied in extrusion lengths exceeding 1,000 foot continuous when necessary.

Specifications

Applications

  • Fluid Handling, Chemical Transfer, Medical / Pharmaceutical, Semiconductor, Compressed Air / Inert Gas, Instrumentation, Processing

Color

  • Natural

Compatible Fittings

  • Compression, Compression-Align®, Fast & Tite, TrueSeal™

Industry Standards

  • ASTM D2116-07, FDA Compliant, USP Class VI Compliant, VW1, UL 83

Maximum Operating Pressure (bar)

  • 6 to 43 (Dependent on Size)

Maximum Operating Pressure (psi)

  • 80 to 630 (Dependent on Size)

Maximum Working Temperature (°C)

  • 204° C

Maximum Working Temperature (°F)

  • 400° F

Media

  • Air, Chemicals, Water

Minimum Bend Radius (inch)

  • 3/8” to 8

Minimum Bend Radius (mm)

  • 10 to 203

Minimum Burst Pressure (bar)

  • 28 to 217 (Dependent on Size)

Minimum Burst Pressure (psi)

  • 400 to 3150 (Dependent on Size)

Minimum Working Temperature (°C)

  • 268° C

Minimum Working Temperature (°F)

  • 450° F

Product Type

  • 3/32 Industrial Wall, 1/8 Industrial Wall, 5/32 Industrial Wall, 3/16 Industrial Wall, 1/4 Industrial Wall, 5/16 Industrial Wall, 3/8 Industrial Wall, 7/16 Industrial Wall, 1/2 Industrial Wall, 9/16 Industrial Wall, 3/16 Heavy Wall, 1/4 Heavy Wall, 5/16

Standard Pack Quantity (feet)

  • 25, 50, 100, 500, or 1000

Style

  • Smoothbore

Tube I.D. (inch)

  • 1/32” - 7/8

Tube I.D. (mm)

  • 1.57 - 22

Tube O.D. (inch)

  • 3/32, 1/8”, 5/32”, 3/16”, 1/4”, 3/8”, 7/16, 1/2”, 9/16, 5/8”, 3/4”, 1

Tube O.D. (mm)

  • 2, 3, 4, 5, 6, 8, 10, 13, 14, 16, 19, 1

Tube Type

  • Industrial Wall, Heavy Wall, Metric

Tube Wall Thickness (inch)

  • 0.031 to 0.062

Tube Wall Thickness (mm)

  • 0.79 to 1.57

Tubing Material

  • FEP
