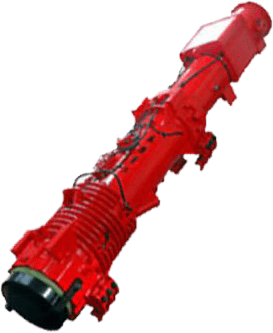

D100-13 Diesel Hammer
Brand: PACO Ventures, LLCSpecifications
Brand
Pump Setting 1
- 157,685 ft-lb (214 kNm)
Pump Setting 2
- 190,210 ft-lb (258 kNm)
Pump Setting 3
- 221,010 ft-lb (300 kNm)
Pump Setting 4
- 246,390 ft-lb (334 kNm)
Blows Per Minute
- 36 - 45
Related Piston Stroke
- 7.1 - 11.1 ft (2.1 - 3.4 m)
Fuel Consumption at Full Load
- 8 gal/hr (30 L/hr)
Oil Consumption
- .68 gal/hr (2.6 L/hr)
Hammer
- 44,894 lb (20,364 kg)
Piston
- 22,045 lb (10,000 kg)
Hammer w/ Standard Guiding
- 48,800 lb (22,135 kg)
Fuel Tank
- 41 gal (155 liters)
Oil Tank
- 8 gal (32 liters)
A - Length
- 24 ft (7,345 mm)
LH - Length, Standard
- 28 ft (8,565 mm)
B - Center to Trip
- 26 in (660 mm)
C - Center to Pump Guard
- 23 inches (584 mm)
D - Width of Hammer
- 35 in (890 mm)
D1 - Width of Trip
- 48 in (1,206 mm)
W - Minimum Lead Width
- 42 in (1,067 mm)
