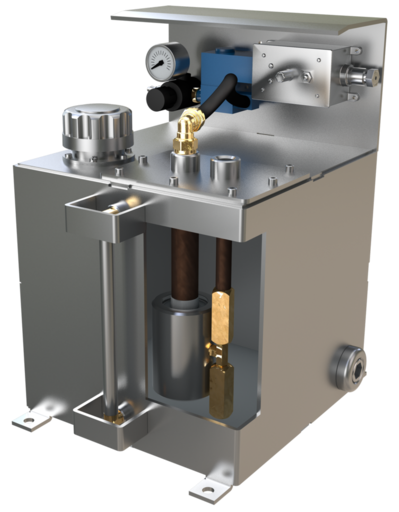

Matex Lubricator
Brand: Matex Control ChemicalThe Matex Lubricator is AIR operated and TIME activated. The Matex Lubricator is completely self-contained and easy to install.
The Matex Lubricator can be used to inject a wide range of different products such as Tri-Lube, RDO-302 ES, Foam etc. If injecting foam, a Matex soluble lubricant must be used to avoid rust that could be caused from the foam.
The pump is designed to deliver a measured amount of product each injection to ensure a proper mixture.
The pump also has been designed with only one moving part to ensure low maintenance.
The timer assembly is available in a range of different voltages and is designed to measure the exact amount of injection necessary to deliver the amount of product desired.
The timer is also available with a setting dial on the face of the timer for ease of increasing or decreasing the amount of product necessary, or timer can be pre-set for lubricating at a set rate.
The Matex Lubricator has a one year warranty against manufacture defects from date of purchase on replacement parts only.
Specifications
Brand
Air Supply Working Pressure
- 50 psi - 150 psi
Pump Discharge Pressure
- 4 x 1 multiplier
Pump Discharge Volume
- 7.3 ml per stroke
Voltages
- 12 or 24 volt DC
Pump Volume
- .75 to 2.5 liters per hour
Pump Activation Time
- 4 - 6 Sec
Pump Delay Time
- 5 - 30 Sec
Lubricator Dimensions
- 27.5” x 24” x 30” - 50 Gallon
- 15.5” x 12” x 18” - 7.5 Gallon
Shipping Dimensions
- 28.25” x 29.25” x 32.5” - 50 Gallon
- 17.25” x 17.25” x 20” - 7.5 Gallon
Shipping Weight
- 50 Gallon - 140 lbs
- 7.5 Gallon - 52 lbs
