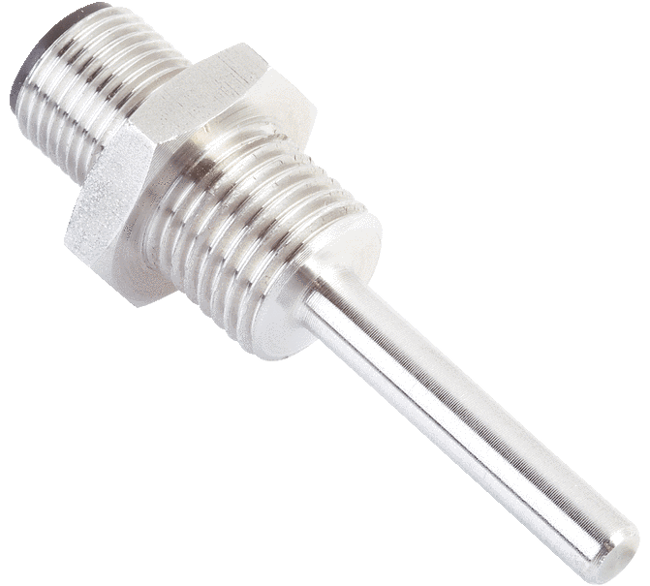

TSP Temperature Sensor
Brand: Sick AGThe TSP is a universal purpose platinum insertion thermometer for the temperature measurement in liquids and gases.
It can be adapted to specific applications through its available connection threads and insertion lengths.
Wetted parts are made from stainless steel 1.4305.
The platinum resistor (Pt100 or Pt1000, accuracy class B according to IEC 60751) is located inside the tip of the probe.
It is electrically connected by an M12 x 1 circular connector.
Therefore, the device is compact and well suited for narrow installation spaces.
Features- Reliable operation through rugged design and high-quality materials
- Good long-term stability
- Quick and safe installation
- Simple system integration through very compact dimensions
1 - 12 of 64 Part Numbers
TBS-1MAG10305MZ
- Output Signal - Pt1000, 2-Wire (Class B)
- Process Connection - Thread G 1/4" B
- Installation Length / Diameter - 30 mm / 5 mm
TBS-1MAG10405MZ
- Output Signal - Pt1000, 2-Wire (Class B)
- Process Connection - Thread G 1/4" B
- Installation Length / Diameter - 40 mm / 5 mm
TBS-1MAG10506MZ
- Output Signal - Pt1000, 2-Wire (Class B)
- Process Connection - Thread G 1/4" B
- Installation Length / Diameter - 50 mm / 6 mm
TBS-1MAG10606MZ
- Output Signal - Pt1000, 2-Wire (Class B)
- Process Connection - Thread G 1/4" B
- Installation Length / Diameter - 60 mm / 6 mm
TBS-1MAG30305MZ
- Output Signal - Pt1000, 2-Wire (Class B)
- Process Connection - Thread G 3/8" B
- Installation Length / Diameter - 30 mm / 5 mm
TBS-1MAG30405MZ
- Output Signal - Pt1000, 2-Wire (Class B)
- Process Connection - Thread G 3/8" B
- Installation Length / Diameter - 40 mm / 5 mm
TBS-1MAG30506MZ
- Output Signal - Pt1000, 2-Wire (Class B)
- Process Connection - Thread G 3/8" B
- Installation Length / Diameter - 50 mm / 6 mm
TBS-1MAG30606MZ
- Output Signal - Pt1000, 2-Wire (Class B)
- Process Connection - Thread G 3/8" B
- Installation Length / Diameter - 60 mm / 6 mm
TBS-1MAM10305MZ
- Output Signal - Pt1000, 2-Wire (Class B)
- Process Connection - Thread M14 x 1.5
- Installation Length / Diameter - 30 mm / 5 mm
TBS-1MAM10405MZ
- Output Signal - Pt1000, 2-Wire (Class B)
- Process Connection - Thread M14 x 1.5
- Installation Length / Diameter - 40 mm / 5 mm
TBS-1MAM10506MZ
- Output Signal - Pt1000, 2-Wire (Class B)
- Process Connection - Thread M14 x 1.5
- Installation Length / Diameter - 50 mm / 6 mm
TBS-1MAM10606MZ
- Output Signal - Pt1000, 2-Wire (Class B)
- Process Connection - Thread M14 x 1.5
- Installation Length / Diameter - 60 mm / 6 mm
1 - 12 of 64 Part Numbers
Specifications
Brand
Measurement Range
- -30° to 130° C
Accuracy
- Sensor Element: Class B According to IEC 60751
Output Signal
- Pt100, 2-Wire or Pt1000, 2-Wire
- Pt100, 3-Wire or Pt1000, 3-Wire
Process Connection
- 1/4” NPT
- G 1/4” B
- G 3/8” B
- M14 x 1.5
Insertion Length
- 30 to 60 mm
Probe Diameter
- 5 mm, 6 mm
Response Time
- t50: ≤ 2.5 s
- t90: ≤ 6 seconds
Enclosure Rating
- IP67
