Wise Pressure Gauge, P258 Series

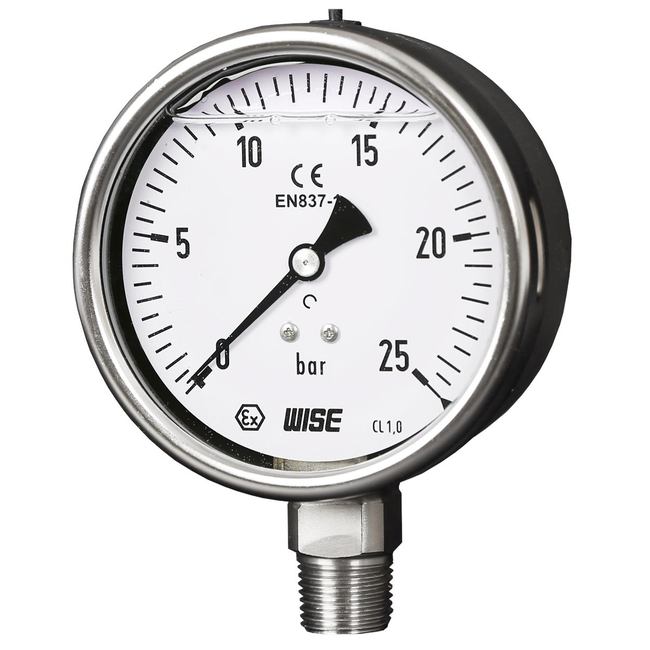

Euro Gauge Liquid Filled Industrial Pressure Gauge P258 Series

Brand: Wise Control Inc
Add Product to My Catalog

P258 series are suitable for corrosive environments.

Typical application includes : Chemical, petro-chemical, refining process, power generation, marine and food industry. The filled liquid absorbs vibration and pulsation.

Specifications

Brand

Accuracy

  • ± 1.0 % of Full Scale
  • P2582 (63 mm) & P2583 (80 mm): ± 1.6 % of Full Scale
  • P2584 (100 mm) & P2586 (160 mm): ± 0.5 % of Full Scale

Approvals & Certifications

  • ATEX Ex II GD C IIC TX
  • Pressure Equipment Directive (2014/68/EU)-Annex III Module H

Blowout Protection

  • Back, Rubber Disc for 80, 100 & 160 mm
  • Top, Rubber Disc for 63 mm

Case

  • 304 Stainless Steel

Cover

  • 304 Stainless Steel Bayonet Typical

Degree of Protection

  • EN 60529 / IEC 529 / IP67

Dial

  • White Aluminum with Black Graduations

Element

  • ≥ 10 MPa: Helical Typical Bourdon Tube
  • ≥ 6 MPa: Helical Typical Bourdon Tube
  • < 10 MPa: C-Typical Bourdon Tube
  • < 6 MPa: C-Typical Bourdon Tube
  • Model: P2582 (63 mm) & P2583 (80 mm)
  • 316 Stainless Steel
  • Model: P2584 (100 mm) & P2586 (160 mm)

Filling Liquid

  • Glycerin

Movement

  • Stainless Steel

Nominal Diameter

  • 63, 80, 100 & 160 mm

Options

  • Zero Adjustable Pointer
  • Pressure Connection & Element: Monel
  • Silicone Filling
  • (Only Available with Diameter 100 & 160 mm)
  • Zero Adjustment (External): 100 & 160 mm

Pointer

  • Black Painted Aluminum Alloy

Pressure Connection

  • 316 Stainless Steel

Process Connection

  • 63 mm: 1/8”, 1/4” PT, NPT & PF
  • 80 mm: 1/4”, 3/8” PT, NPT & PF
  • 100 & 160 mm: 1/4”, 3/8”, 1/2” PT, NPT & PF

Scale Range (MPa, KPa, bar)

  • 100 & 160 mm: 0.1 ~ 0 to 0 ~ 200 MPa
  • 63 & 80 mm: 0.1 ~ 0 to 0 ~ 100 MPa

Temperature Effect

  • ± 0.4 % Per 10° C of Full Scale
  • Accuracy at Temperature Above & Below the Reference Temperature (20° C) Will be Effected by Approximately

Window Material

  • Laminated Safety Glass

Working Pressure

  • Over Range Protection: 130 % of Full Scale
  • 100 % of Full Scale (100 & 160 mm)
  • Steady: 75 % of Full Scale (63 & 80 mm)

Working Temperature

  • Ambient: -20° to 65° C (with Glycerin Filling)
  • -40° to 65° C (with Silicone Filling)
  • Fluid: Max.
  • Maximum
