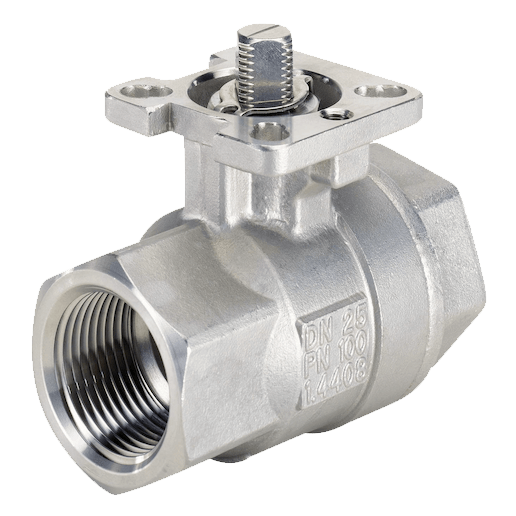

599 Series 2-Way Ball Valve

Brand: Valve Solutions

The 599 Series 2-Way Ball Valves can be coupled to any commercially available actuator to provide equal percentage flow control.

The Ball Valves are 1/4-turn rotary control valves.
Features
  • 200 psi close-off with ANSI Class IV leakage for all line sizes and actuators
  • Available with chrome-plated brass ball and brass stem or stainless steel ball and stem
  • Blow-out proof stem withstands high pressure
  • Universal mounting
  • Actuator and bracket can be rotated (90 degree increments)
  • Standoffs provide thermal barrier between the actuator and the valve
  • Operating handle for manual operation

Specifications

Approvals & Certifications

  • ANSI

Ball Material

  • Chrome-Plated Brass
  • Stainless Steel

Enclosure, Body Material

  • Brass: ASTM B283, C37700

Flow Rate

  • 0.4 to 160 Cv

NPT Connection

  • 1” NPT Female
  • 1/2” NPT Female
  • 1-1/2” NPT Female
  • 1-1/4” NPT Female
  • 2” NPT Female
  • 3/4” NPT Female

O-Ring Material

  • EPDM (Stem Seals)

Process Temperature

  • 2° to 120° C (35° to 248° F)

Rotation

  • Angle of Rotation: 0° to 90°

Stem Material

  • Brass or Stainless Steel
