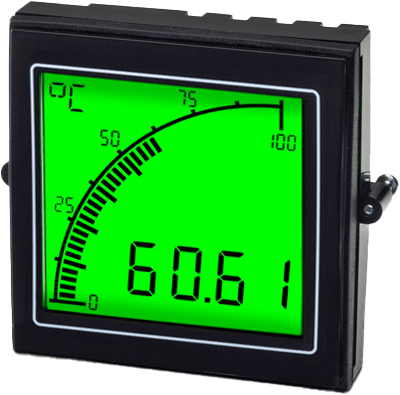

Temperature Meter
Brand: TrumeterThe APM Temperature Meter is designed for use with thermocouples.
Its versatile inputs and two outputs, which can be used to control other systems in the process, make it ideal for a wide range of industrial applications.
Features- 4-20mA analog retransmission output
- Configurable 20 point non-linear conversion table
- Innovative input signal optimization for accuracy to 0.2°C
- *NEW* Remote monitoring with Trumeter Cloud and IOT Gateway
Specifications
Brand
Thermocouple
- Type B, E, J, K, N, R, S and T
PSU
- 12-24 Vac/dc
Accuracy
- 0.5° C after 30 min | 0.2° C after 40 min
Outputs
- Output 1: Digital (open collector) or Analog (4-20 mA),
- Output 2: Digital (open collector) or Analog (4-20 mA)
Communication
- Modbus RTU Optional
Dimensions
- 72 mm x 72 mm x 53 mm
Screen Size
- 57 mm x 53 mm
Certifications
- CE, cUL, IP65, NEMA 4 & 12, ROHS, UL
