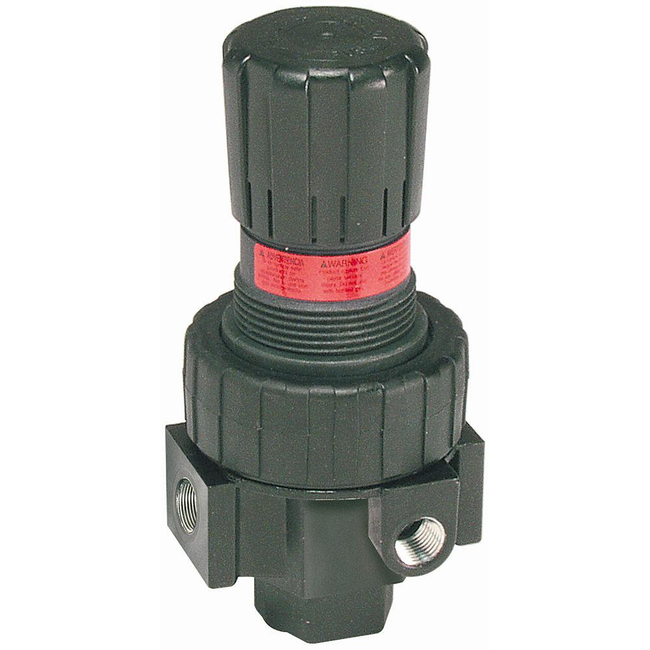

Pressure Regulator - 07R Series (Standard)
Brand: Parker Hannifin07R modular compact regulators provide a convenient and low cost method to reduce a supplied air pressure to desired outlet pressure.
They provide quick response and accurate pressure regulation for the most demanding industrial applications.
They are generally used in a wide variety of applications where reduced pressure is highly desirable for energy conservation, safety requirements, air circuit control and air instrumentation.
For specific flow and space restricted applications, this product can provide a solution that does not sacrifice performance.
Pressure regulators transform a fluctuating air supply to a relatively constant reduced air pressure within the operating range of the regulator itself.
The 07R can be mounted using a modular connector to other 07 series air preparation products.
With various options available, this series is easy to design to your application.
Features- Quick response
- Accurate pressure regulation
- Easy to design to your application
Specifications
Brand
Body Material
- Zinc
Flow Rate (dm3/sec)
- 42
Flow Rate (scfm)
- 90
Gauge Port
- 1/4”
Maximum Inlet Pressure (bar)
- 17
Maximum Inlet Pressure (psig)
- 250
Operating Temperature (°C)
- 0° to +79° C
Operating Temperature (°F)
- +32° to +175° F
Port Size
- 1/2”, 3/4”
Port Type
- NPT, BSPP
Pressure Control Range (bar)
- bar: 0 to 4, 0 to 8, 0 to 17
Pressure Control Range (psig)
- psig: 1 to 60, 2 to 125, 1 to 250
Product Type
- Standard Regulator
Seal Material
- Nitrile
Weight (kg)
- 1.1
Weight (Lbs)
- 2.5
- General Assembly
- Packaging
- Conveyance
- General Pneumatics
