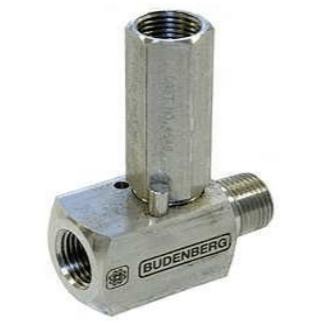

6GM Over Range Protection Valve
Brand: BudenbergThe Budenberg 6GM over range protection valve has been primarily designed to protect pressure gauges (or other instruments) against over pressure conditions, either designed or accidental due to failure of other systems.
The operation of the unit is based upon a piston assembly that can open or close dependant upon the applied pressure at the inlet. The unit should be fitted directly to the instrument to be protected.
An internal spring holds the valve open under normal conditions. When the inlet pressure exceeds the setting pressure of the valve then the spring is compressed and closes the valve.
Setting is achieved by selection of the appropriate spring to operate in the correct range and adjustment of the spring adjuster until the desired operational setting is achieved.
Units can be used on any clean, non viscous fluids or gases that are compatible with the chosen materials of construction.
Specifications
Brand
Body Material
- 316 Stainless Steel
BSP Connection
- 1/2” BSPP Female
- 1/2” BSPT Female
- 1/2” BSPP Male
- 1/2” BSPT Male
- 1/4” BSPP Female
- 1/4” BSPT Female
- 1/4” BSPP Male
- 1/4” BSPT Male
- 3/8” BSPP Female
- 3/8” BSPT Female
- 3/8” BSPP Male
- 3/8” BSPT Male
NACE & NIST
- NACE
NPT Connection
- 1/2” NPT Female
- 1/2” NPT Male
- 1/4” NPT Female
- 1/4” NPT Male
- 3/8” NPT Female
- 3/8” NPT Male
Pressure Type
- Gauge
Working Pressure
- Max 700 bar or 10,000 psi
Material of Construction
- Spring Housing/Piston/Spring Adjuster/Body Seal: 316 Stainless Steel
- O-ring: Nitrile, Ethylene Propylene for Skydrol Viton
- Spring: BS 5216 HS3 Spring Steel, Nickel Plated
Temperature Range
- Up to 150° C
- Oil and Gas
- Chemical
- Petrochemical
- Power Generation
- Water and Waste Water
