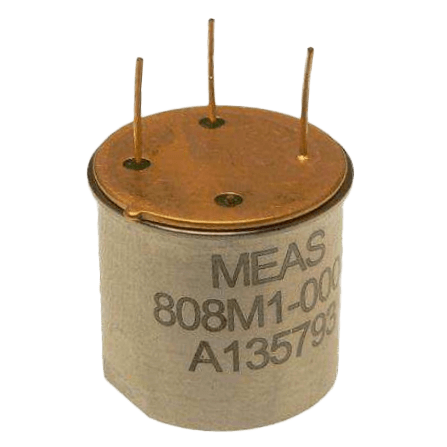

808M1 Embedded Accelerometer
Brand: American Sensor Technologies IncThe Model 808M1 is a miniature adhesive mount voltage output accelerometer built on a 3-pin TO-8 header.
It is available in ±4g and ±20g dynamic ranges and offers a flat frequency response to 5 kHz. The accelerometer features a hermetic construction in a TO-8 header configuration.
The model 808M1 incorporates a stable piezo-ceramic crystal with low power electronics in a 100% shielded housing suitable for many embedded OEM applications. The accelerometer is offered in two configurations; one for adhesive mounting and one for stud mounting.
Features- ±4g and ±20g Range
- Wide Bandwidth up to 5 kHz
- TO-8 Configuration
- Hermetically Sealed
- -40° to 100°C Operating Range
- Case Grounded Design
- 3-5.5 Vdc Excitation Voltage
Specifications
Accuracy
- ± 1 % of Full Scale Output - Non-Linearity
Approvals & Certifications
- CE
- RoHS
Bandwidth
- 5 kHz
Consumption
- < 0.80 mA
Current
- < 0.80 mA - Supply Current
Enclosure, Body Material
- Stainless Steel
Excitation Voltage
- 3-5.5 Vdc
Frequency
- 0.4 to 5,000 Hz ± 3 dB
- 1 to 3,000 Hz ± 1 dB
- 18,000 Hz - Natural Frequency
Insulation Resistance
- > 100 megaohms at 50 Vdc
Load Impedance
- < 100 ohms - Output Impedance
Mounting
- Surface Mounting - Grounding
NACE & NIST
- NIST - Traceable Amplitude Calibration
Operating Temperature
- -40° to 100° C (-40° to 212° F)
Output
- ± 2 V - Full Scale Output Voltage
- 3-Wire
Output Noise
- 0.0006 to 0.0008 G RMS - Broadband 1 Hz to 10 kHz: Residual Noise
Sensitivity
- 100 to 500 mV/g ± 10 %
- 5 % - Transverse Sensitivity
Sensor, Probe Material
- Piezo-Ceramic, Shear Mode
Shock
- 5,000 G
Storage Temperature
- -54° to 125° C (-65° to 257° F)
- Machine Monitoring
- Low-Cost OEM Installation
- Permanent Structural Study
- Embedded Sensing Solution
- Data Loggers
