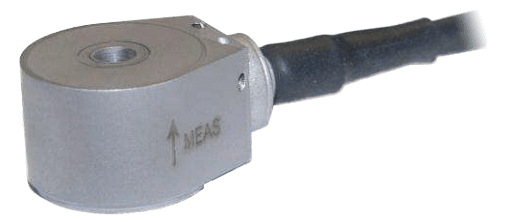

7202A Plug & Play Accelerometer
Brand: American Sensor Technologies IncThe Model 7202A is a case isolated high temperature IEPE accelerometer with internal shielding.
The accelerometer has a flat bandwidth up to 15 kHz with a resonant frequency greater than 40 kHz. The model 7202A is available in ±10 to ±500 g ranges and has an operating temperature range up to 130°C. The unit is hermetically sealed and features an integral strain relief with an ETFE jacketed cable.
Features- ±10 to ±500 g Dynamic Range
- Wide Bandwidth up to 15 kHz
- Case Isolated, Internally Shielded
- Hermetically Sealed
- Annular Shear Mode
- Through Hole Mount
- Stable Temperature Response
- Integral Strain Relief
1 - 12 of 1,170 Part Numbers
7202A-0010-100
- Range - ± 10 G
- Cable Length - 10 Custom Cable Length: Inches
7202A-0010-1000
- Range - ± 10 G
- Cable Length - 100 Custom Cable Length: Inches
7202A-0010-1010
- Range - ± 10 G
- Cable Length - 101 Custom Cable Length: Inches
7202A-0010-1020
- Range - ± 10 G
- Cable Length - 102 Custom Cable Length: Inches
7202A-0010-1030
- Range - ± 10 G
- Cable Length - 103 Custom Cable Length: Inches
7202A-0010-1040
- Range - ± 10 G
- Cable Length - 104 Custom Cable Length: Inches
7202A-0010-1050
- Range - ± 10 G
- Cable Length - 105 Custom Cable Length: Inches
7202A-0010-1060
- Range - ± 10 G
- Cable Length - 106 Custom Cable Length: Inches
7202A-0010-1070
- Range - ± 10 G
- Cable Length - 107 Custom Cable Length: Inches
7202A-0010-1080
- Range - ± 10 G
- Cable Length - 108 Custom Cable Length: Inches
7202A-0010-1090
- Range - ± 10 G
- Cable Length - 109 Custom Cable Length: Inches
7202A-0010-110
- Range - ± 10 G
- Cable Length - 11 Custom Cable Length: Inches
1 - 12 of 1,170 Part Numbers
Specifications
Approvals & Certifications
- CE
- RoHS
Bandwidth
- > 15 kHz
Cable Material
- ETFE Insulated Leads & Crosslinked ETFE Jacket
Current
- 2-20 mA - Excitation Current
Electrical Connectors
- 22 AWG ETFE Insulated Leads, Braided Shield, Crosslinked ETFE Jacket
Enclosure, Body Material
- Stainless Steel
Environmental Protection
- IP67
Frequency
- 0.6 to 20,000 Hz ± 1 dB
- 1 to 10,000 Hz ± 5 %
- 25,000 to 44,000 Hz - Natural Frequency
Humidity
- Hermetically Sealed
Load Impedance
- < 100 ohms - Output Impedance
Mounting
- Through Hole (8 or M4 Cap Screw)
NACE & NIST
- NIST Traceable Amplitude Calibration from 20 Hz to ± 1 dB Frequency Response Limit
Non-Linearity
- ± 1 % of Full Scale Output
Operating Temperature
- -55° to 130° C (-67° to 266° F)
Operating Voltages
- 18-30 Vdc - Compliance Voltage
Output
- ± 5 V - Full Scale Output Voltage
Output Noise
- 0.001 to 0.003 G RMS - Residual Noise
Response Time
- Discharge Time Constant: 0.8 to 1.2 seconds
- Warm-Up Time: 2 seconds
Sensitivity
- < 5 % - Transverse Sensitivity
- 10-500 mV/g
Sensor, Probe Material
- Ceramic (Shear Mode)
Shock
- 5,000 G
Storage Temperature
- -55° to 130° C (-67° to 266° F)
Supply Voltage
- 6-13 Vdc - Bias Voltage
Torque
- 20”-Pound
- Gearbox Vibration Monitoring
- Harsh Environments
- Health Usage & Machinery Monitoring Systems
- High Frequency Applications
- Machinery Monitoring
