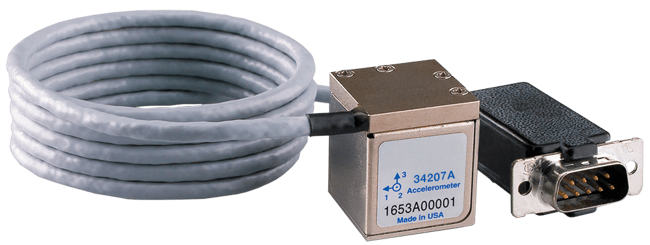

34207A Plug & Play Accelerometer
Brand: American Sensor Technologies IncThe 34207A accelerometer has each mutually orthogonal axis precisely aligned within 0.75 degree of the theoretical ideal.
This provides the accuracy required by most measurement applications without any compensation. Critical applications requiring higher accuracy can use the alignment data provided on the calibration certificate to compensate for any small residual error.
Choose the bandwidth and range options best suited for your application to measure up to ±70 g accelerations on each of three axes. Each axial sensor has been tested over the -40° to 85° C temperature range and has a nominal full scale output swing of ±2 volts. The zero g output level is nominally 2.5 volts. Precise values for each axis are available on the included calibration certificate.
1 - 12 of 21 Part Numbers
34207A-R010-B10K-T004
- Range - ± 10 G
- Bandwidth - 0 to 10 kHz
- Termination - 4 Feet Cable with DB9M
34207A-R010-B1K0-T004
- Range - ± 10 G
- Bandwidth - 0 to 1 kHz
- Termination - 4 Feet Cable with DB9M
34207A-R010-B5K0-T004
- Range - ± 10 G
- Bandwidth - 0 to 5 kHz
- Termination - 4 Feet Cable with DB9M
34207A-R020-B10K-T004
- Range - ± 20 G
- Bandwidth - 0 to 10 kHz
- Termination - 4 Feet Cable with DB9M
34207A-R020-B1K0-T004
- Range - ± 20 G
- Bandwidth - 0 to 1 kHz
- Termination - 4 Feet Cable with DB9M
34207A-R020-B5K0-T004
- Range - ± 20 G
- Bandwidth - 0 to 5 kHz
- Termination - 4 Feet Cable with DB9M
34207A-R030-B10K-T004
- Range - ± 30 G
- Bandwidth - 0 to 10 kHz
- Termination - 4 Feet Cable with DB9M
34207A-R030-B1K0-T004
- Range - ± 30 G
- Bandwidth - 0 to 1 kHz
- Termination - 4 Feet Cable with DB9M
34207A-R030-B5K0-T004
- Range - ± 30 G
- Bandwidth - 0 to 5 kHz
- Termination - 4 Feet Cable with DB9M
34207A-R040-B10K-T004
- Range - ± 40 G
- Bandwidth - 0 to 10 kHz
- Termination - 4 Feet Cable with DB9M
34207A-R040-B1K0-T004
- Range - ± 40 G
- Bandwidth - 0 to 1 kHz
- Termination - 4 Feet Cable with DB9M
34207A-R040-B5K0-T004
- Range - ± 40 G
- Bandwidth - 0 to 5 kHz
- Termination - 4 Feet Cable with DB9M
1 - 12 of 21 Part Numbers
Specifications
Accuracy
- ± 1° C (± 1.8° F)
- 0.2 % of Full Scale - Non-Linearity Typical
- 2 % of Full Scale of Reading - Non-Linearity, Max.
Frequency
- 0 to 10,000 Hz - Frequency Response
Input
- 15-20 mA - Input Current
- -20 to 38 V - Input Voltage Limits
- 8.5-36 V - Input Voltage - Operating
Input Impedance
- 10 kiloohms
Materials of Construction
- Aluminum - Nickel-Plated
Mounting
- Screw Mount
Output
- 0.5 - 4.5 V - Output Voltage Swing
Output Noise
- 2.2 mg/√Hz
Sensitivity
- ± 0.25 % - Transverse Sensitivity
- ± 28 mV/g at 25° C
- 1 % (TBD) at 25° C
- 6.45 mV/°C
Shock
- ± 4,000 G - Any Axis for 0.5 milliseconds, Powered or UnPowered
Temperature Range
- -40° to 85° C (-40° to 185° F)
Thermal Drift
- ± 500 mg at 1.25° cycles/min - Zero G Bias Level
Zero Offset
- 2.5 ± 0.010 V at 25° C - Zero G Bias Level
