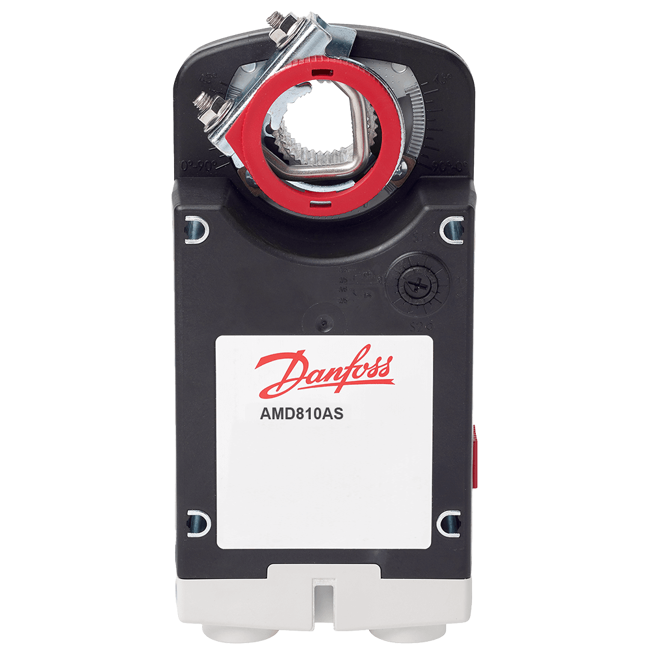

Danfoss Damper Actuator, AMD 810/810 AS

AMD 810/810 AS Damper Actuator

Brand: Danfoss
Add Product to My Catalog

Danfoss Damper Actuator, AMD 810/810 AS
AMD actuators are used for the regulation of air dampers of 90° angle of rotation to be used in heating, ventilation and air conditioning applications (HVAC).
Features
  • Manual operation
  • Rotation direction selection by switch
  • Adjustable angle of rotation by mechanical end stop
  • Position indication
  • Overload protection
  • Direct mounting with universal spindle clamp
  • Anti-rotation strap for preventing actuator from rotating
  • Maintenance free

View_Details

Specifications

Brand

Adjustment

  • Auxiliary Switch

Ambient Temperature Range

  • -30° to 50° C (-22° to 122° F)

Applications

  • Air Conditioning Systems
  • Heating Systems
  • Ventilation Systems

Approvals & Certifications

  • CE (2011/65/EU)
  • EMC Directive 2004/108/EC: EN 61000-6-2, EN 61000-6-3
  • Low Voltage Directive (LVD) 2006/95/EC: EN 60730-1, EN 60730-2-14
  • RoHS

Circuit Protection

  • Overload Protection

Class

  • Protection Class II (230 V)
  • Protection Class III (24 V)

Consumption

  • Power Consumption in Motion: 5.5 W
  • Power Consumption in Stand-By (End Position): 1.5 W

Environmental Protection

  • Grade of Enclosure / Degree of Protection: IP54

Frequency

  • 50/60 Hz

Humidity

  • Ambient Humidity: 5 to 95 % Non-Condensing (EN 60730-1)

Input

  • Control Input: 2-Point
  • Control Input: 3-Point

Mounting

  • Direct Mounting

Operation

  • Manual Operation

Output Noise

  • Sound Power Level Motor: < 45 dBA

Power Supply

  • 230 Vac/dc ± 20 %
  • 24 Vac/dc

Rotation

  • 0° to 95°
  • Clockwise
  • Counter-Clockwise

Speed

  • 150 seconds/90°

Storage Temperature

  • Storage & Transport Temperature: -30° to 80° C (-22° to 176° F)

Supply Voltage

  • 230 Vac/Vdc Rated Impulse Voltage: 4 kV According to (EN 60730-1)
  • 24 Vac/dc Rated Impulse Voltage: 0.8 kV According to (EN 60730-1)

Switch Type

  • DIP Switches

Torque

  • Operating Torque: 40 Nm (354 in/lbs)

  • Heating, Ventilation and Air Conditioning applications (HVAC)

Documentation

Data Sheets
