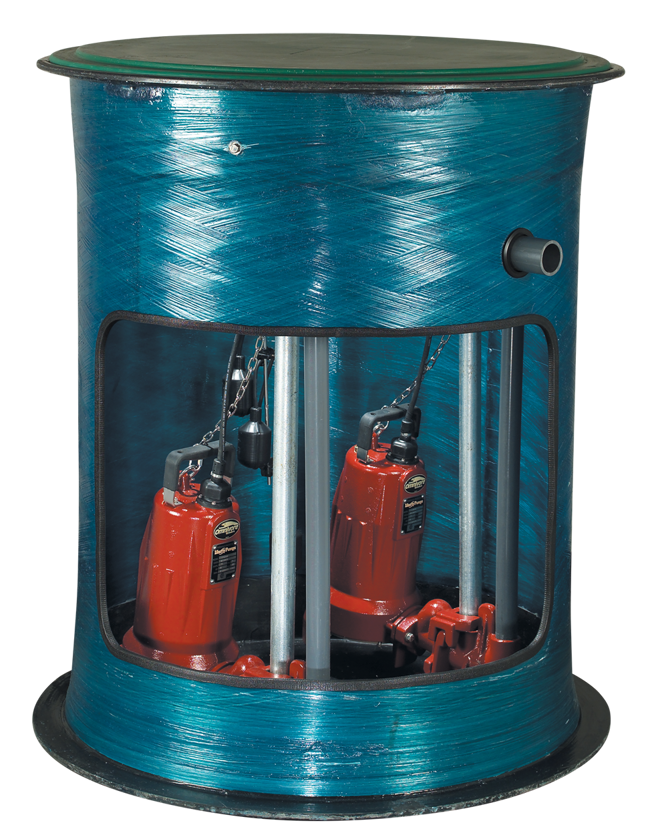

D3660-Series 36" x 60" 2 hp Pre-Assembled Duplex Grinder Package
Brand: Liberty PumpsFor residential and commercial applications, the D3660LSG is a complete factory assembled duplex grinder package featuring LSG200-Series 2 hp Omnivore® grinder pumps.
All internal brackets, floats, guide rail base and discharge piping are pre-installed at the factory saving hours of labor at the job site.
Features- Factory assembled duplex grinder package with 36" X 60" fiberglass basin with anti-flotation collar
- 2 hp Omnivore® grinder pumps available in various voltages
- Available in single or 2-stage
- 4" inlet hub
- Galvanized guide rail piping (stainless optional)
- Factory pre-assembled guide rail system
- Factory pre-assembled schedule 80 PVC discharge piping with ball valves and check valves
- Fiberglass basin with anti-flotation collar
- Standard green fiberglass cover, solid (optional black steel, solid)
- All stainless steel supports and brackets pre-mounted
- Matching duplex control panel included
Specifications
Brand
Discharge Size
- 2"
Cable Length
- 25 ft
Basin Dimensions
- 36" x 60"
Grinder Pump
- 2 hp
Cover Material
- Black Steel, Solid
- Standard Green Fiberglass
Material of Construction
- Rail Pipe: Galvanized Guide, Stainless Optional
- Basin: Fiberglass
- Chain for Pump Lift-out, Supports & Bracket: Stainless Steel
- Galvanized Guide Rail Piping (Stainless Optional)
Discharge Depth
- 24", 36" (From Top of Basin)
Total Basin Capacity
- 264 gal (999 liters)
Volume Per Pump Cycle
- 66 gal (250 liters)
Alarm Level
- 34" (86 cm)
On Level
- 28" (71 cm)
Off Level
- 13" (33 cm)
Certifications & Approvals
- cCSAus
- SSPMA
