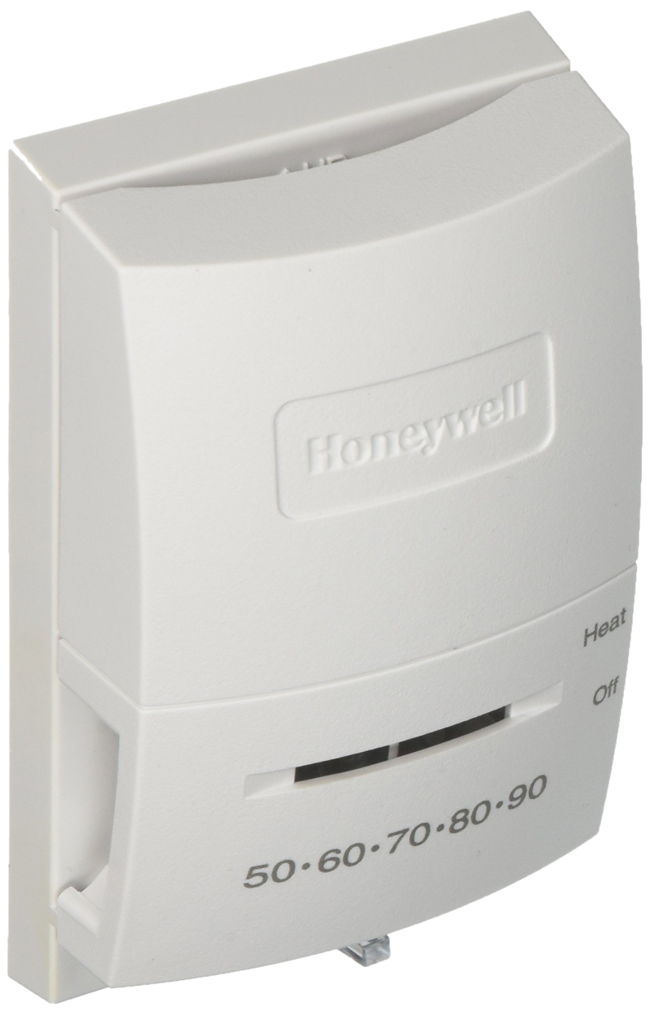

T827K1009/U Mercury Free Heat Only Thermostat for Single Stage Low Voltage Systems
Brand: Resideo Technologies IncHeating thermostats provides control of 750 mV or 12 Vdc heating systems
Features- Rated for 12 Vdc and Millvoltage Systems
- Coiled Bimetal Element Operates Snap-acting Switch
- Temperature Setting Lever on Bottom of Thermostat
- Mounting Using Two Screws Through Base to Wall or Vertical Outlet Box
- Temperature Setting and Thermometer Scale on Cover
Specifications
Brand
Dimensions
- 4-3/4 in. high x 2-7/8 in. wide x 1-3/8 in. deep
- 121 mm high x 73 mm wide x 35 mm deep
Mounting
- Vertical
Stages
- 1 Heat
Supply Voltage
- 12 Vdc; 750 mV
Switch Positions - System
- HEAT-OFF
Color
- Premier White®
Sensor Element
- Bimetal
Accuracy
- ±2 °F
- ±1 °C
Switching Action
- SPST
Switch Type
- Precision Snap Action
Terminal Designations
- R, W
Setting Temperature Range
- 45 °F to 95 °F
- Heat Only
