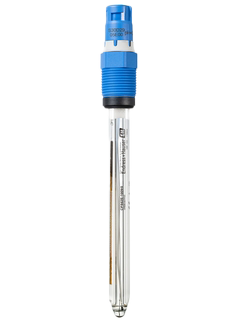

Digital ORP Sensor Memosens CPS62E
Brand: Endress+Hauser AG
Memosens CPS62E is the digital specialist for demanding processes and hygienic applications. Its contamination-resistant gel guarantees stable measurement even in flowing media, in low conductivities and at high temperatures
Thanks to Memosens 2.0 digital technology, CPS62E combines maximum process integrity with simple operation. It resists moisture and enables lab calibration. It offers extended storage of calibration and process data providing the perfect basis for predictive maintenance.
- Process technology and monitoring of processes with:
- Quickly changing ORP values
- High proportion of electrode poisons such as H2S
- Chemical processes
- Hygienic and sterile applications:
- Fermenters
- Biotechnology
- Life sciences
With ATEX, IECEx, CSA C/US, NEPSI, Japan, INMETRO approvals for use in hazardous areas, zones 0, 1 and 2.
Features- Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services
- Sensor resists strong acids and bases and high organic loads
- Maintains high accuracy even after CIP/SIP or autoclaving
- Free from animal-based materials and from acrylamide
- Upside-down mounting option allows for flexible installation
- Maximum process safety is ensured by non-contact, inductive signal transmission
- Minimized process downtime and extended sensor lifetime result in reduced operating costs
Specifications
Brand
Measuring Range
- -1,500 to 1,500 mV
Material of Construction
- Sensor Shaft: Glass to Suit Process
- Metal Lead: Ag/AgCl
- Open Aperture: Ceramic Junction, Zirconium Dioxide
- O-ring: FKM
- Process Coupling: PPS Fiber-glass Reinforced
- Nameplate: Ceramic Metal Oxide
- ORP Measuring Element: Platinum
Process Temperature
- 0° to 100° C (32° to 212° F)
- 0° to 140° C (284° F) (140° C (284° F) or Sterilization Only)
Process Pressure
- 0.8 to 7 bar (11.6 to 101.5 psi) Absolute
Connection
- Inductive, Contactless Connection Head with Memosens 2.0 Technology
Temperature Sensor
- NTC 30k
Certifications & Approvals
- ATEX, IECEx, CSA C/US, NEPSI, Japan Ex and INMETRO
Ingress Protection
- IP68
Dimensions
- Diameter: 12 mm (0.46 inch)
- Shaft Length: 120, 225, 360 mm (4.68, 8.77, 14.04 inch)
Hygienic and Sterile Applications:
- Fermenter
- Biotechnology
- Pharma
