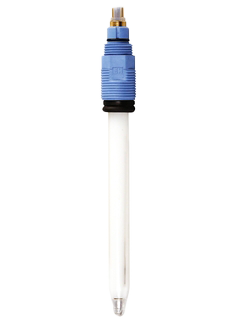

Analog pH Sensor Orbipore CPS91
Brand: Endress+Hauser Group Services AGOrbipore CPS91 is the analog specialist for pH measurement in fibrous media or media with a high content of suspended solids such as dispersions, precipitation reactions or emulsions.
The open aperture prevents fouling and guarantees you the most reliable measurement under extreme process conditions.
- Chemical processes
- Pulp and paper industry
- Contaminated media and suspended solids
- Dispersions
- Precipitation
- Emulsions
With ATEX, FM, and CSA approval for application in hazardous areas.
Features- Open aperture for application in heavily soiled media
- Low maintenance and long service life due to stabilized gel filling
- Not affected by fluctuations in pressure and temperature
Specifications
Measuring Range
- pH 0 to 14
Material of Construction
- Glass
Process Temperature
- Max 110° C (230° F)
Process Pressure
- Max. 10 bar (145 psi)
Ingress Protection
- IP68
Connection
- TOP68 Plug-in Head
Temperature Sensor
- Optional with Integrated Pt100 or Pt1000
Certifications & Approvals
- ATEX, FM, CSA
Dimensions
- Diameter: 12 mm (0.46 inch)
- Shaft Length: 120, 225, 360, 425 mm (4.68, 8.77, 14.04, 16.57 inch)
- Chemical Processes
- Pulp and Paper
- Flue Gas Cleaning
- Contaminated Media & Suspended Solids
