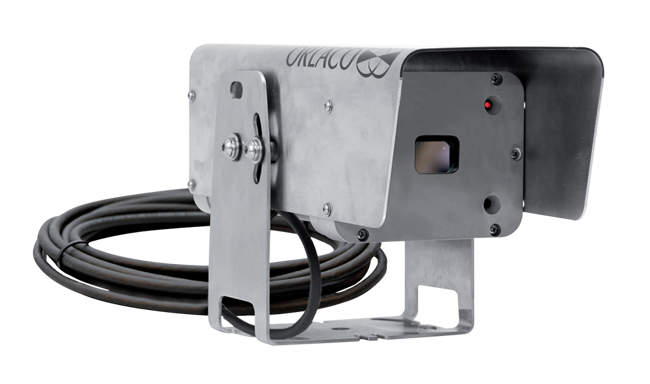

Orlaco Thermal Imaging Camera Stainless Steel RS232
Brand: OrlacoThe Orlaco Thermal Imaging Camera - TIC stainless steel RS232 is a sturdy night vision camera.
This camera can be used in serial vision solutions on vehicles and vessels.
The camera is shock and vibration-proof, filled with nitrogen, 100% waterproof, has heated lens glass and provides the best possible image in all weather conditions.
The camera has Uncooled LWIR Thermal Imager 336x256 VOx microbolometer technology and a 9Hz frame rate.
Wide Field Of View - WFOV 24º x 18º thermal Imaging camera suitable for Orlaco Standard RS232: Pelco-D/Visca communication.
You can communicate with this camera from a serial Orlaco monitor.
You will need a serial Orlaco monitor to do so.
Other than connecting it directly to a serial Orlaco monitor, there are many other options for controlling and connecting it to third-party systems.
Specifications
Brand
Input Voltage
- 12...30V/DC
Vibration Resistance
- 50G
Protection Class
- Watertight IP68
- IP69K
Operating Temperature
- -40ºC to +85ºC
Dimensions
- 260 x 140 x 122mm without bracket
Weight
- 5.1 kg
