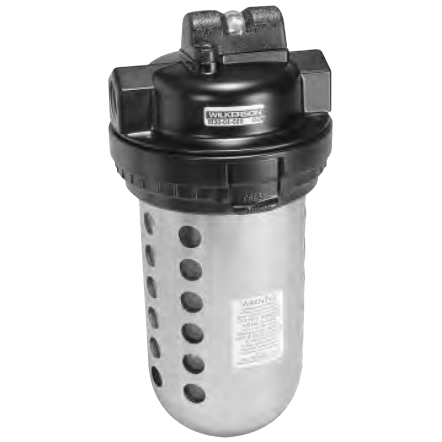

M30 Series Coalescing Filter
Brand: Wilkerson Corporation
Features
- Manual Drain
- 0.01 Micron Rated Filter Element
- Quick-disconnect Bowl Guard with Integral Plastic Bowl and Safety Latch
- Differential Pressure Indicator
1 - 12 of 21 Part Numbers
M30-04-000
- Port Size - 1/2"
- Modle Type - Manual Drain
- Bowl Type / Element - Polycarbonate Bowl / Bowl Guard / “C” Element
M30-04-F00
- Port Size - 1/2"
- Modle Type - Automatic Drain
- Bowl Type / Element - Polycarbonate Bowl / Bowl Guard / “C” Element
M30-04-FM0
- Port Size - 1/2"
- Modle Type - Automatic Drain
- Bowl Type / Element - Metal Bowl / “C” Element
M30-04-FS0
- Port Size - 1/2"
- Modle Type - Automatic Drain
- Bowl Type / Element - Polycarbonate Bowl / Bowl Guard / “B” Element
M30-04-M00
- Port Size - 1/2"
- Modle Type - Manual Drain
- Bowl Type / Element - Metal Bowl / “C” Element
M30-04-S00
- Port Size - 1/2"
- Modle Type - Manual Drain
- Bowl Type / Element - Polycarbonate Bowl / Bowl Guard / “B” Element
M30-04-X00
- Port Size - 1/2"
- Modle Type - Manual Drain
- Bowl Type / Element - Polycarbonate Bowl / Bowl Guard / “D” Element (No DPI)
M30-06-000
- Port Size - 3/4"
- Modle Type - Manual Drain
- Bowl Type / Element - Polycarbonate Bowl / Bowl Guard / “C” Element
M30-06-F00
- Port Size - 3/4"
- Modle Type - Automatic Drain
- Bowl Type / Element - Polycarbonate Bowl / Bowl Guard / “C” Element
M30-06-FM0
- Port Size - 3/4"
- Modle Type - Automatic Drain
- Bowl Type / Element - Metal Bowl / “C” Element
M30-06-FS0
- Port Size - 3/4"
- Modle Type - Automatic Drain
- Bowl Type / Element - Polycarbonate Bowl / Bowl Guard / “B” Element
M30-06-M00
- Port Size - 3/4"
- Modle Type - Manual Drain
- Bowl Type / Element - Metal Bowl / “C” Element
1 - 12 of 21 Part Numbers
Specifications
Brand
Flow Capacity
- 1/2”: 123 scfm (58.2 dm³/s)
- 3/4”: 173 scfm (81.0 dm³/s)
- 1”: 203 scfm (96.0 dm³/s)
Maximum Supply Pressure
- Plastic Bowl: 150 psig (10.3 bar)
- Metal Bowl: 200 psig (13.8 bar)
Operating Temperature
- Plastic Bowl: 32° to 125° F (0° to 52° C)
- Metal Bowl: 32° to 150° F (0° to 65.5° C)
Port Size
- NPT / BSPP-G: 1/2
- NPT / BSPP-G: 3/4
- NPT / BSPP-G: 1
Standard Filtration (micron)
- Type B: 0.5 mg/m³
- Type C: 0.01 mg/m³
- Type D: 0.003 mg/m³
Weight
- 5.4 lb (2.4 kg)
