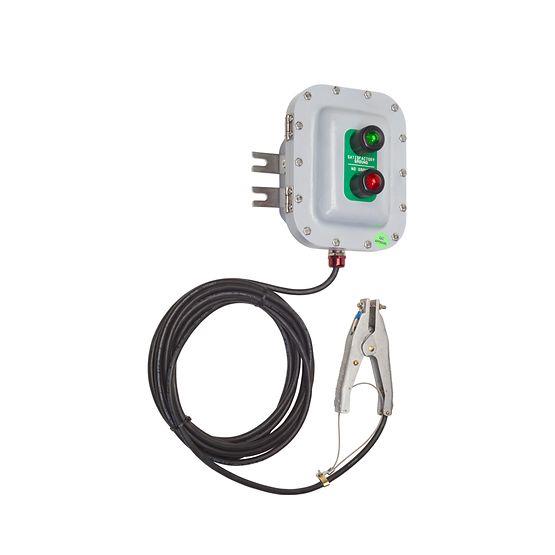

Appleton™ AEPGI Series Ground Indicator
Brand: AppletonThe Appleton™ explosion-proof, dust-ignition-proof AEPGI Series ground indicator device is used to logically indicate the presence of grounding of tank cars or tank trucks before and during the transfer of combustible materials.
When connected to a truck prior to loading or unloading, the presence of a safe ground is indicated by a green light. The absence of ground is indicated by a red light.
Interlocking circuitry will prevent pumps from starting until a ground is established or shut pumps down if a ground is lost at any time during loading or unloading.
This intrinsically safe circuit and explosionproof enclosure enables the ground device to be used in hazardous location areas.
Features- Explosionproof, Dust-Ignition-proof
- One green indicator light for "Satisfactory Ground"
- One red indicator light for "No Ground"
- 2 conductor #14 SJEOO-WA coiled cable terminated with an alligator ground clamp
- Compact design
- Easy open hinge standard
- External ground lug and internal ground lug supplied
- Accommodates #14 through #2 AWG
Specifications
Brand
Control Contacts
- 250 Vac 10 Amp Continuous
NEC Certifications & Compliances
- Class II, Div. 1 & 2, Groups E, F, G
- Class III, NEMA 4, 7, 9
- Class I, Div. 1 & 2, Groups B, C, D, Class II, Div. 1 & 2, Groups E, F, G, Class III, NEMA 4, 7, 9
Operating Temperature
- -46° to +105° C (-51° to +221° F)
Power Requirement
- 115/240 Vac
Standard Materials & Finishes
- Copper-Free (4/10 of 1 % Max.) Aluminum Enclosure with an Epoxy Powder Coat
