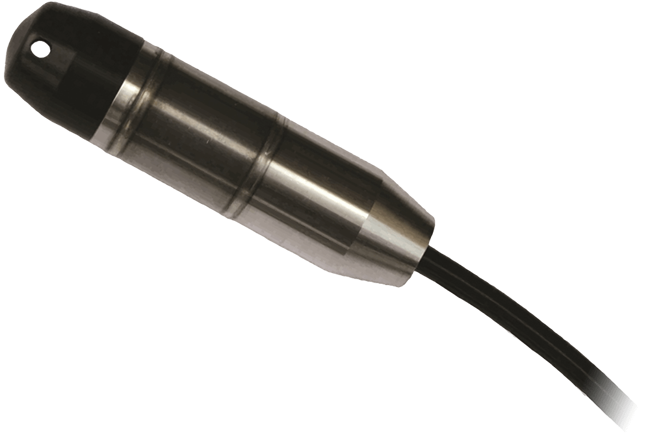

PTX20 Submersible Pressure Transmitter
Brand: Status InstrumentsThe PTX20 is a high quality level transmitter providing a 2-Wire (4-20) mA output over a wide pressure range.
The piezoresistive element provides excellent accuracy and stability in an all welded stainless steel housing. A titanium housing is available on request for more aggressive process media.
The body of the product is oil filled and coupled with high accuracy electronics, this enables the product to maintain a very high level of accuracy and temperature stability when used with high temperature processes.
There are open and closed versions to choose from, and also a ballast weight can be specified too.
Measurement ranges of any value between 1 mH2O to 250 mH2O can be ordered making the PTX20 a very versatile product suitable for many applications.
Specifications
Brand
Accuracy
- ≤ ± 0.25 % of Full Scale (Standard) - Zero-based Non-Conformity According to DIN 16086, Including Hysteresis & Repeatability,
- Total Error Band: ± 0.7 % of Full Scale Typical > 0.5 to 25 bar at -5° to 50° C (23° to 122° F)
- Total Error Band: ± 1 % of Full Scale Typical 0.1 to 0.5 bar And, Max.
- Total Error Band: ± 1.5 % of Full Scale, Max.
- Total Error Band: ± 2 % of Full Scale Typical 0.1 to 0.5 bar at -5° to 80° C (23° to 176° F)
- Total Error Band: ± 2.5 % of Full Scale, Max.
Approvals & Certifications
- EN 55022 - Emission, Class B
- EN 61000-4-2 - Generic Immunity
- EN 61000-4-3 - Electrostatic Discharge
- EN 61000-4-4 - Fast Transients (Burst)
- EN 61000-4-5 - Surge
- EN 61000-4-6 - Conducted Radio-Frequency
Approvals & Certifications
- ATEX II 1D Ex iad 20 IP6x T145 to T70° C, II 1 G Ex ia IIB/IIC T3 to T6 - Gas/Dust
Burst Pressure
- ≥ psi: 2,900 (kPa: 20,000, bar: 200)
Cable Material
- Polyurethane
- Teflon
Diaphragm Material
- 316L Stainless Steel
Electrical Protection
- Reverse Polarity
- Short Circuit
Enclosure, Body Material
- 316L Stainless Steel
Output
- 4-20 mA 2-Wire
Power Supply Effect
- Typically < 0.05 % of Full Scale - Supply Voltage Influence
Pressure Range
- bar: 0 to 24.55
- kPa: 0 to 2,455
- meter WC: 0 to 250
- psi: 0 to 356
Pressure Type
- Absolute
- Gauge
Process Temperature
- -5° to 80° C (23° to 176° F)
Resistance Effect
- < 0.05 % of Full Scale - Load Resistance Influence
Response Time
- < 1 millisecond / 10 to 90 % of Full Scale
Stability
- 2 to 25 bar
- 0.5 to 2 bar And, Max.
- < 0.5 % of Full Scale Typical for 0.1 to 0.5 bar
- < 4 Mbar, Max.
Storage Temperature
- -10° to 80° C (-14° to 176° F)
Supply Voltage
- 9-30 Vdc - ATEX Version
- 9-33 Vdc
