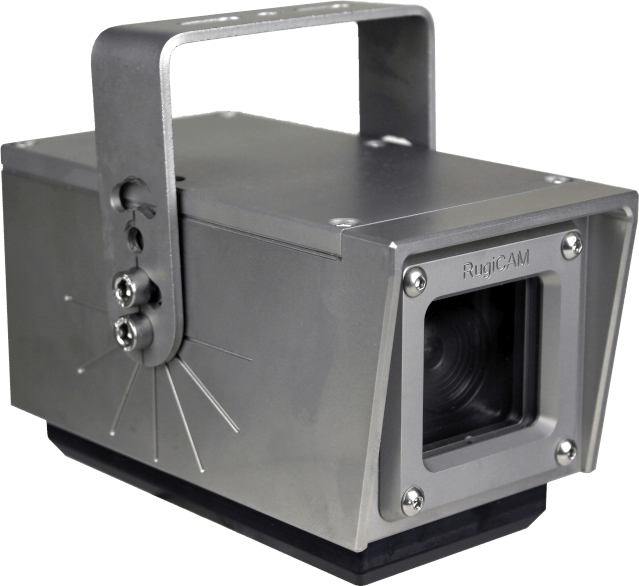

CSL RugiCam-IP Mk 2 Intrinsically Safe Network Camera

Brand: MTL Instruments
Add Product to My Catalog

MTL RugiCAM-IP high definition: HD IS Ethernet network camera enable plant managers across process industries worldwide to ensure they are operating safely in hazardous zone 1 and zone 2 areas.

The first of its kind for the hazardous area market, the MTL RugiCAM-IP camera monitors and provides enhanced visual safety to control and automation systems installed on site, and provides additional security and visibility to specific hazardous locations in plants so safe operation can be maintained.

It is lightweight, connecting directly to compatible IS Ethernet systems up to 100 metres via a Cat5e cable or WiFi, and it allows for quick and easy maintenance, therefore enabling plants to save time and associated costs.
Features
  • Intrinsically Safe ATEX / UKEX/ IECEx / QLD Certification
  • Ex ia I Ma: M1 mining. Ex ia IIB T4 Ga; Ex ia IIIC T135°C Da: Non-mining Ta = -40ºC to +60ºC
  • Resolution 1920x1080, 1290x720: Main + D1, VGA, CIF: Sub-stream
  • 1/2.8” SONY Back-Illuminated CMOS Starlight Technology Sensor + HS3516D DSP
  • Minimum Illumination 0.001Lux + Wide Dynamic Range - WDR
  • Mega-Pixel 4mm f1.6 IR Lens
  • H.264 + H.265 Server, MJPEG and Adjustable Frame Rate - Controls Network Bandwidth Usage: 30fps Max
  • 10/100 IS Ethernet LAN Interface Supports up to100m Cat5e Connection
  • Wi-Fi Supporting 802.11 b/g/n Standards at up to 150Mbps – with Integral Antenna ‘Puck’ Design
  • LED indication - on rear – Power / LAN
  • ONVIF 2.4
  • Backup and Restore of Configuration Settings
  • 12VDC IS Power Supply Input or PoExTM: Power over IS Ethernet
  • Rugged IP66 Rated Polished 316 Stainless Steel Enclosure suitable for Harsh Environments
  • Compact Dimensions W:87xH:95xD:165mm with WIFI - W:87xH:79xD:165mm Without WIFI
  • Plug and Socket Connections - Shortens Installation Time

View_Details

Specifications

Brand

Sensor

  • 1/2.8" SONY Back-Illuminated CMOS Starlight Technology Sensor + HS3516D DSP

Lens

  • Mega-Pixel 4 mm-focal length f1.6 IR Lens Viewing angle (approx.) 78° (H) x 59° (V) x 89° (D)

Switchable Illumination

  • White-light or IR LEDs (optional accessory)

Input Power

  • 12 Vdc IS Power Supply Input
  • PoEx™ (Power over IS Ethernet)
  • 9492-PS-PLUS or Similar

Cable Length

  • 10/100 IS Ethernet Interface supports up to 100 m Cat5e Connection

Connector

  • M12 or Krott connector options

Video Streaming

  • H.264 + H.265 Server
  • MJPEG and Adjustable Frame Rate- Controls Network Bandwidth Usage (30 fps max)

Wi-Fi

  • Wi-Fi supporting 802.11 b/g/n standards at up to 150 Mbps - with integral antenna ‘Puck’ design

  • Petrochem
  • Mining

Documentation

Product Information

User Guide
