Submersible Level Transmitter

Brand: Xi'an UTOP Measurement Instrument Co, Ltd
Add Product to My Catalog

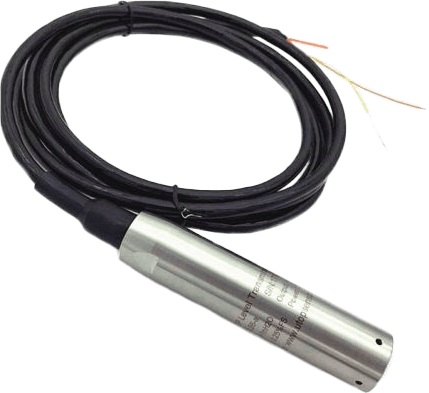

ULB6 Submersible Liquid Level Transmitter is made from stainless steel with rigid and robust construction.

The protection cap with a small hole not only protect the diaphragm, but also let the liquids contact the diaphragm freely.

The exquisite sealing technology as well as good assembly techniques guarantee ULB6 submersible level transmitter's outstanding quality & performance.

The product has a waterproof cable with vent hose which is designed for submersible applications.

ULB6 Submersible Liquid Level Transmitter is designed with IP68 protection, it is widely applied in petroleum, chemical industry, medicine, metallurgy, hydrology exploration etc.
Features
  • Rigid and robust construction, IP68 protection
  • Wide application scope, long service life
  • Reversed polarity protection and current limiting protection
  • Against thunder stroke, against radio-frequency interference
  • PUR, NBR, PE or PTFE cable for options

Specifications

Brand

Pressure Ranges

  • 0 ~ 1 mH₂O...200 mH₂O

Overload Pressure

  • 200 % Full Scale

Output Signal

  • 4~20 mA, 0~5 V, 0~10 V, 1~5 V

Accuracy

  • 0.1 % FS, 0.25 % FS, 0.5 % FS

Load Resistance

  • RL = (U-12 V)/0.02 A (4~20 mA Current Output), U-Loop Voltage (V)

Long-Term Stability

  • < 0.1 % Full Scale/year

Supply Voltage

  • 12 ~ 36 Vdc

Compensated Temperature Range

  • -10° ~ +70° C

Storage Temperature Range

  • -40° to 100° C

Temperature Coefficient of Zero

  • 0.2 % Full Scale/10° C

Temperature Coefficient of Span

  • 0.2 % Full Scale/10° C

Electrical Connection

  • Ø 7.2 mm Shielded Cable with Vent Hose

Sealing

  • Nnitrile-Butadiene Rubber (Standard) or Fluoro-Rubber Sealing Ring

Material of Wetted Part and Housing

  • 1Cr18Ni9Ti

Material of Pressure Membrane

  • 316L Stainless Steel or Tantalum
