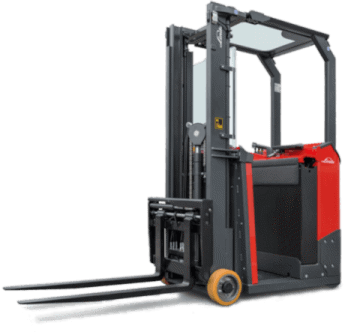

E10 Electric Forklift Truck
Brand: Linde Material HandlingThe compact E10 electric forklift truck from Linde Material Handling combines high maneuverability with a wide range of application options.
With a lifting capacity of up to 1,000 kilograms, it is the smallest model in its series but is suitable for a multitude of applications thanks to its optimal weight distribution.
Its short wheelbase, compact construction with a width of just 828 millimeters and optimal steering concept enable stacking, transporting, order picking, loading and unloading, even in the tightest spaces.
Automatic speed reduction when cornering also gives the E10 high stability.
Features- Automatic speed reduction
- Overhead guard against falling loads
- BlueSpot™ and TruckSpot™ (optional)
- Optional flashing warning lights
- High freedom of movement for optimal visibility
- Padded backrest
- Fatigue-free working without changing position
- Low entry step on both sides
- Easy and intuitive operation
- Speed-dependent steering
- Narrow aisle width and small turning radius
- Optimal stability thanks to crosswise position of batteries
- Optional dual-command control
- Easily accessible components
- Time savings for servicing and maintenance
- Low downtimes
- Easy battery access
Specifications
Brand
Manufacturer
- Linde
Model
- E10
Series
- 8917
Power Unit
- Battery
Operation
- Stand-on
Load Capacity/ Load
- 1.0
Load Centre Distance
- 600
Axle Centre to Fork Face
- 170
Wheelbase
- 1129
Service Weight
- 2250
Axle Load with Load, Drive Side/Load Side
- 820/ 2418
Axle Load without Load, Drive Side/Load Side
- 501 / 737
Tyres
- Tractothan
Tyre Size, Drive Side
- Ø 254 x 115
Tyre Size, Load Side
- 2 x Ø 254 x 82
Wheels, Number Drive Side/ Load Side (x = Driven Wheels)
- 1x / 2
Track Width, Load Side
- 746
Fork Carriage Tilt, Up/Down
- 4 / 2
Height of Mast, Lowered (mm)
- 2190
Free Lift (mm)
- 1630
Lift (mm)
- 1660
Height of Mast, Extended (mm)
- 2250
Height of Overhead Guard (mm)
- 2190
Stand Height (mm)
- 120
Height of Steering Wheel in Operating Position (mm)
- 1052
Fork Height, Lowered (mm)
- 40
Overall Length (mm)
- 2604
Length to Fork Face (mm)
- 1454
Overall Width (mm)
- 828
Fork Dimensions (mm)
- 40/80/ 1150
Fork Carriage to ISO 2328, Class / Type
- 2A
Fork-Carriage Width (mm)
- 650
Ground Clearance, Mast (mm)
- 60
Ground Clearance, Centre of Wheelbase (mm)
- 60
Aisle Width with Pallet 1000 x 1200 Crosswise (mm)
- 2862
Aisle Width with Pallet 800 x 1200 Lengthways (mm)
- 2944
Turning Radius (mm)
- 1320
Aisle Width without Pallet (mm)
- 2862
Travel Speed, with/without Load (km/h)
- 8/ 12
Lifting Speed, with/without Load (m/s)
- 0.25 /0.42
Lowering Speed, with/without Load
- 0.25 /0.22
Maximum Climbing Ability, with/without Load (%)
- 8/ 15
Service brake
- Electric
Drive Motor Rating S2 60 min (kW)
- 3.0
Lift Motor Rating at S3 15 % (kW)
- 5.7
Battery Voltage/ Rated Capacity (5 h) (V/Ah)
- 24 / 300
Battery Weight (± 5 %) (kg)
- Minimum: 230
Type of Drive Control
- Electronic
Noise Level at Operators Ear (dB(A))
- < 70
