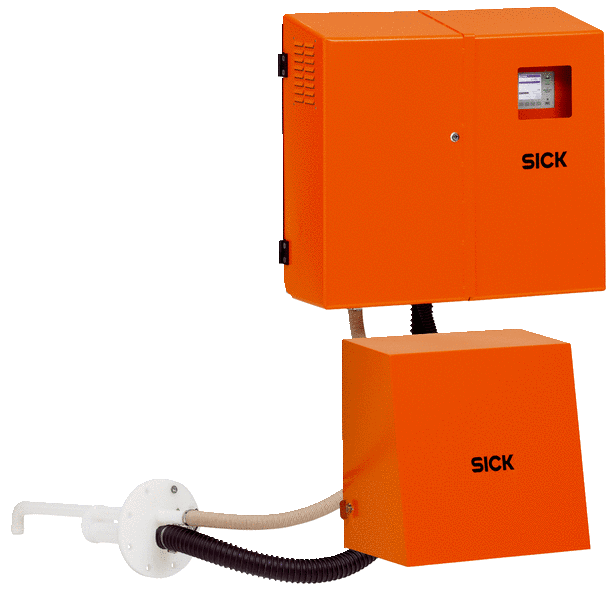

FWE200DH Scattered Light Dust Measuring Device

Brand: Sick AG

The FWE200DH dust measuring device is designed to continuously measure dust concentrations in wet flue gas.

The gas is extracted via a gas sampling probe and heated above the dew point.

Droplets in the gas are vaporized, making it impossible for them to falsify the measurement results.

The highly sensitive scattered light measurement principle enables accurate measurements even at low dust concentrations.

The FWE200DH meets the requirements of EN 14181 and EN 15267.
Features
  • Reliable and proven dust measurement in wet gases
  • Economic operation due to very few consumable parts and very low installation effort
  • Very low maintenance since no moving parts come into contact with the aggressive gas
  • Very long service life due to intelligent design

1 - 1 of 1 Part Numbers
FWE200DH
FWE200DH
SICK Scattered Light Dust Measuring Devices
1 - 1 of 1 Part Numbers

Specifications

Brand

Certifications & Approvals

  • CE

Enclosure Rating

  • IP65
  • IP54

Measuring Range

  • Certified: 0 to 7.5 mg/m³, 0 to 10 mg/m³, 0 to 15 mg/m³, 0 to 50 mg/m³, 0 to 100 mg/m³, 0 to 500 mg/m³
  • 0 to 500 mg/m³
  • 0 to 5 mg/m³

Response Time

  • 0.1 to 600 s

Accuracy

  • ± 2 % of Measuring Range Full Scale

Process Temperature

  • Hastelloy Gas Removal Probe: ≤ +220° C
  • PVDF Gas Removal Probe: ≤ +120° C

Process Pressure

  • -20 to 20 hPa

Process Gas Velocity

  • 5 to 30 m/s

Process Gas Humidity

  • Maximum 40 g/m³ Liquid Water without Water Vapour

Ambient Temperature

  • Intake Temperatures for Purge Air: -20° to 45° C
  • -20° to 50° C

Analog Output

  • 3 Outputs: 0/2/4 ... 20 mA, 750 Ω, Electrically Isolated

Analog Input

  • 6 Inputs: 0-20 mA Not Electrically Isolated

Digital Input

  • 8 Inputs

Communication

  • Serial
  • Ethernet
  • PROFIBUS DP
  • Modbus

Indication

  • LC Display and Status LEDs on Control and Remote Unit

Material of Construction

  • PVDF
  • Hastelloy

Power Supply

  • 115 Vac, 230 Vac 50 Hz / 60 Hz

  • Monitoring of Wet Gas Scrubbing Facilities
  • Measurement in Saturated Gas Downstream of Desulfurization Plants
  • Determination of Dust Concentrations in Wet Exhaust Air And in Technological Processes
