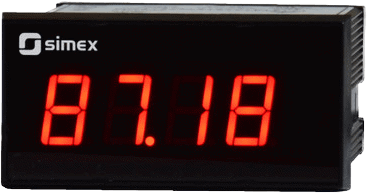

SWE-73-S BCD/RS-485 Meters
Brand: SIMEX sp. z o.o.The low-cost SWE-73-S is a simple digital panel indicator intended for displaying any numerical values and characters defined by user - in SLAVE mode only, sent from the master device over the RS-485 serial interface link.
The displayed value may be collected from other device - in MASTER mode.
The display brightness can be adjusted in 8 steps.
The RS-485 interface makes it easy to set up measurement networks in production process monitoring systems, and also to use the indicators as smart, programmable, digital converters of input signals for computer systems.
An additional advantage of the device is that its dimensions are small and it can be easily mounted.
The meter can be configured with IR remote controller or free S-Config software via the RS-485 communication port.
Configuration of the device can also be programmed to the customer's order.
Features- Low-cost Meter in a Small Case
- No Analog Input
- RS-485 / Modbus RTU
- MASTER / SLAVE
- Brightness Adjustable in 8 Steps
- All Parameters are Freely Programmable with Remote Controller or Free Configuration Software S-Config
Specifications
Brand
Input Type
- No Input
Output Type
- No Output
Power Supply
- 110 Vac
- 230 Vac
- 10…30 Vdc
Display
- LED
- 4 x 13 mm
- Red
Communication Interface
- RS-485 / Modbus RTU
Transmission Parameters
- 1200...115200 bit/s
- 8N1 / 8N2
Operating Temperature
- 0...+50° C
- -20…+50° C
Protection Class
- IP 40: Front
- IP 20: Case and Connection Clips
- Optional Integrated Frame for Panel Cut-out Sealing
Case Material
- NORYL UL 94 V0
Mounting
- Panel
Case Dimensions
- 72 x 36 x 77 mm - 10...30 Vdc
- 72 x 36 x 94 mm - 110 Vac and 230 Vac
