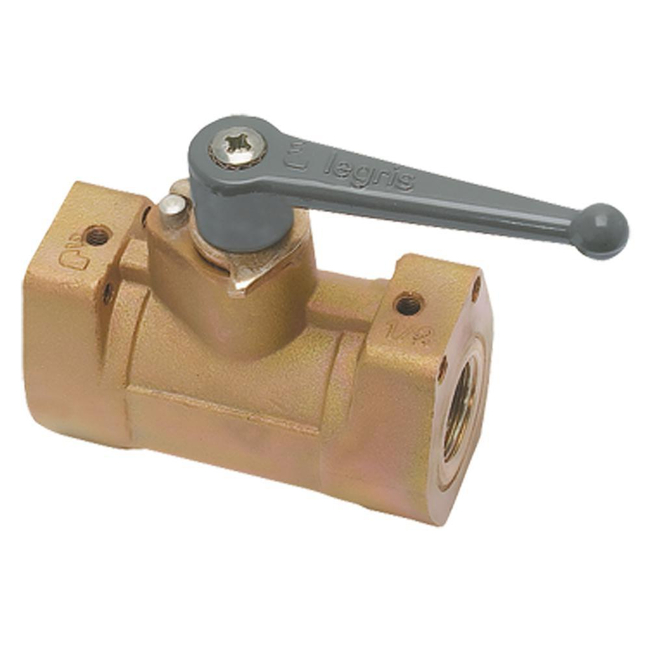

Ball Valves High Pressure Series
Brand: Legris - by ParkerThese valves are suitable for applications with pressures up to 300 bar.
High performance materials and quality manufacturing allow for a wide range of operating pressures and temperatures.
FeaturesHigh Pressure & Safety
- Good sealing at low and high pressure
- Robust design with secure, non-removable inlet and outlet ports
- Forged brass providing excellent long-term strength under severe conditions of use
- 100% leak-tested in production
- Date coding to guarantee quality and traceability
Easy-to-Use
- Fixing screws for through-bulkhead mounting
- The lever may be repositioned or replaced with a handwheel
- Low operating torque
Specifications
Brand
Applications
- Turbines
- Deep-Sea Diving
- Textile
- Machine Tools
- Forming
- Foundry
- Spectacle-Making Industry
- Automotive Process
Ball Seal Material
- NBR
Body Material
- Treated Brass
Connection 1 Thread Style
- BSPP
Handle
- Zamak
Maximum Pressure
- 300 bar
Maximum Working Temperature
- 80° C
Media
- Compressed Air
Minimum Working Temperature
- -15° C
O-Ring Material
- NBR
Product Type
- High Pressure Series
Quantity Per Box
- 2 to 5
Shape
- 2/2 In-Line High Pressure Ball Valve Female
Specifications Met
- RoHS
- REACH
Stem Material
- Stainless Steel
Stem Seal Material
- NBR
Weight
- 0.402 to 0.87 kg
- Allow/Stop Compressed Air Circulation for High Pressure Applications
- Suitable for Vacuum Applications
- Deep-Sea Diving
