Triton Pump Packages

Triton Pump Packages

Brand: Graco, Inc
Add Product to My Catalog

Triton Pump Packages Triton Pump Packages Triton Pump Packages

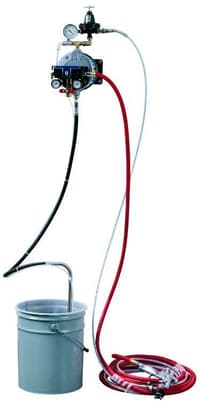

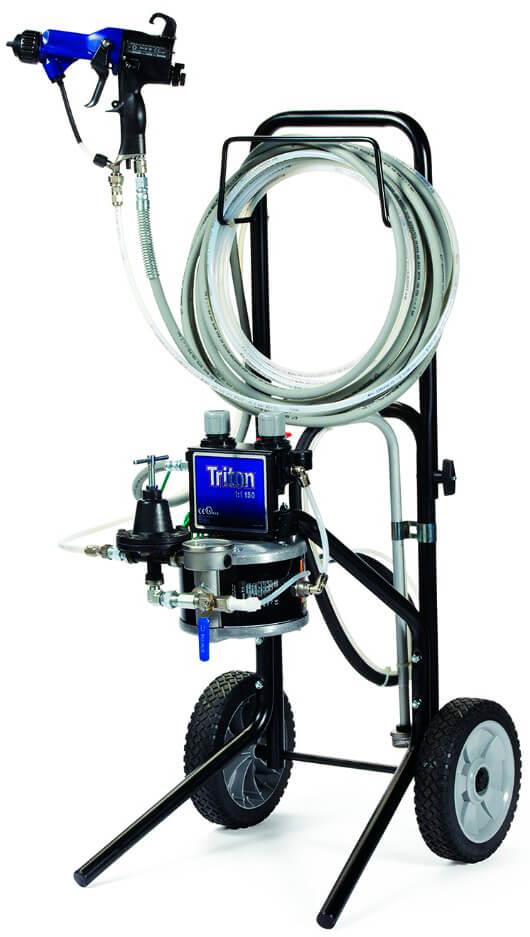

Triton is an air-operated diaphragm spray package that applies a high quality, decorative finish to wood and metal parts.

It is a more effective alternative to traditional pressure pots and standard diaphragm pumps.
Features
  • High quality finish, low pulsation output and smooth pump changeover deliver a consistent spray pattern.
  • Quick color changes and fast material refills save time and money.
  • Rugged, stainless steel or aluminum construction pump handles a wide variety of fluids.
  • Supplies up to 35% extra air flow to gun for superior atomization
  • Saves material and time during flushing, priming and color changes
  • Delivers a consistent spray pattern and uniform film thickness
  • Sprays a wide variety of material viscosities
  • Reduces operator fatigue

Specifications

Brand

Cart Mount Packages, Aluminum

  • 13.6 kg

Cart Mount Packages, Stainless Steel

  • 16.4 kg

Fluid Fittings, Aluminum Packages

  • Zinc-Plated Carbon Steel, Stainless Steel, Polypropylene, Polyethylene

Fluid Fittings, Stainless Steel Packages

  • Stainless Steel, Polypropylene, Polyethylene

Fluid Hoses, Aluminum Packages

  • Nylon, Nickel-Plated Carbon Steel, Ldpe/Rubber Blend (Suction Hose), Aluminum

Fluid Hoses, Electrostatic Packages

  • Nylon, Nickel-Chrome-Plated Carbon Steel, Ldpe/Rubber Blend (Suction Hose)

Fluid Hoses, Stainless Steel Packages

  • Nylon, Stainless Steel, Ldpe/Rubber Blend (Suction Hose)

Fluid Pressure Regulator

  • See Regulator Manual.

Gun

  • See Gun Manual.

Maximum Fluid Working Pressure

  • 7.0 bar, 0.7 MPa

Maximum Incoming Air Pressure

  • 7.0 bar, 0.7 MPa

Maximum Operating Temperature

  • 49° C

Pail Cover, Aluminum Packages

  • Zinc-Plated Carbon Steel

Pail Cover, Stainless Steel Packages

  • Stainless Steel

Pail Mount Packages, Aluminum

  • 10 kg

Pail Mount Packages, Stainless Steel

  • 12.7 kg

Pump

  • See Triton Pump Manual.

Sound Power Level

  • See Triton Spray Package Manual.

Sound Pressure Level

  • See Triton Spray Package Manual.

Stand Mount Packages, Aluminum

  • 9.1 kg

Stand Mount Packages, Stainless Steel

  • 12.3 kg

Wall Mount Packages, Aluminum

  • 8.6 kg

Wall Mount Packages, Stainless Steel

  • 10.9 kg

Documentation

Product Manuals

Brochure

Document

Instructions
