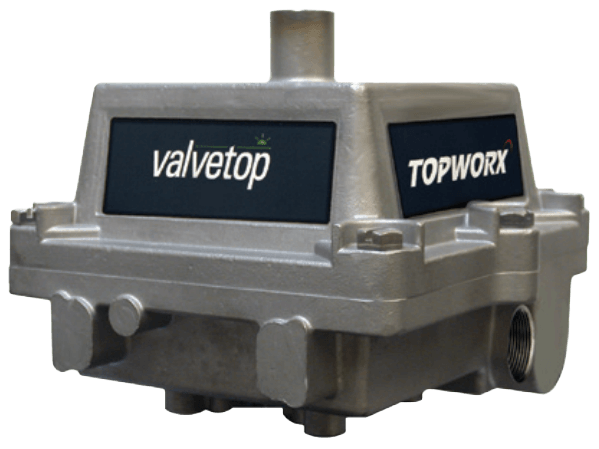

DXN Discrete Valve Monitor
Brand: TopWorxThe DXN discrete valve monitor is qualified for use in containment and is the best solution for quarter-turn AOVs.
It contains two GO Switches to give open/close indication, a ceramic terminal block for quick and easy wiring and it mounts directly onto the actuator for a seamless valve package.
Solenoid valve can be nipple mounted to monitor and terminated inside.
Features- 106 years qualified life
- Negates the need for separate junction box
- Reduces piping and number of disconnects for easy set-up
- Exceeds Global LOCA and Post Fukushima Seismic requirements 10G RIM
- Global Qualifications LOCA - IEEE/Gen 2 and 3/ AP1000 /RCC-E/ CANDU/Qinshan/KHNP
Specifications
Brand
Actuator Type
- Linear
- Rotary
Communication
- AS-Interface
- DeviceNet
- FOUNDATION Fieldbus
- HART
- PROFIBUS
- Wireless HART
Electrical Connectors
- Terminal Block
Environmental Protection
- Hazardous Area
Function
- Limit Switch
Media
- Corrosive
- Dirty
Mounting
- Direct Mounting
Operating Temperature
- C7-Containment Qualified (LOCA): 204° C (400° F)
- C7-Containment, SV7 - HELB / MSIV Qualified (LOCA): 260° C (500° F) Peak
Switch Type
- DPDT
- Mechanical
- Proximity
- SPDT
