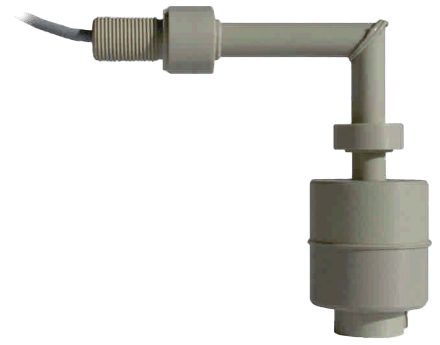

SR 33 Single-Point Level Switch
Brand: Trimod BestaAngled float switch made from polypropylene for aggressive media and a temperature range from -10° to 80° C (14° to 176° F).
Specifications
Brand
BSP Connection
- G 3/8” Male
Density Range
- ≥ 600 kg/m³
Enclosure, Body Material
- Polypropylene
Environmental Protection
- IP54
Length
- Tube: 3.15” (80 mm) Min.
Mounting Position
- Float Vertical, ± 30°
Operating Pressure
- psi: 43.5 (kPa: 300, bar: 3) - Max.
Operating Temperature
- 80° C (176° F) - Max.
Power
- Change-Over Switch: 230 Vac, 40 VA, 1 A AC, Max.
- Change-Over Switch: 230 Vdc, 20 W, 0.5 A DC, Max.
- Opener/Closer: 230 Vac, 100 VA, 1 A AC, Max.
- Opener/Closer: 230 Vdc, 50 W, 0.5 A DC, Max.
Sensor, Probe Style
- Float (Cylindrical)
Switch Points
- 2
Temperature Range
- -10° to 80° C (14° to 176° F)
