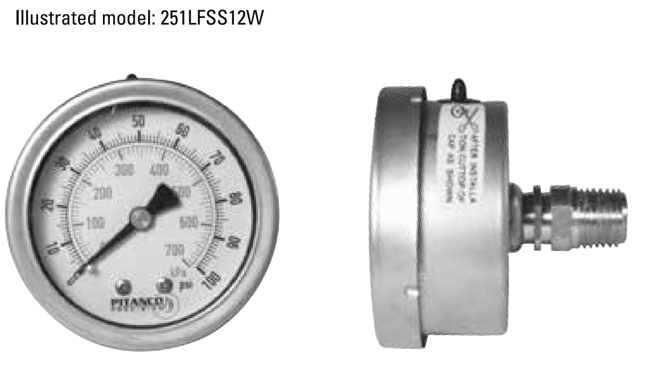

Model LFSS/LFSSW Industrial Glycerin Filled Pressure Gauge
Brand: Pitanco Precision
Competitively priced gauges for multiple use: industrial, pneumatic, hydraulic, plumbing, HVAC, pumps, compressors, etc.
*Models LFSSW 4 in (100 mm) and 6 in (150 mm) are dry but liquid-fillable.
Specifications
Brand
Case
- 304 Stainless Steel
Dial
- White Aluminum with psi Graduations in Black, kPa in Blue
Ring
- 304 Stainless Steel, Bayonet Style Except 1-1/2” (40 mm) Hermetically Sealed
Lens
- Polycarbonate
Pointer
- LFSS: Black Anodized Aluminum for 1-1/2” (40 mm), 2” (50 mm), 2-1/2” (63 mm) and 4” (100 mm)
- LFSSW: Adjustable Pointer for 4” (100 mm) and 6” (150 mm)
Connection
- 316 Stainless Steel
Wetted Parts
- 316 Stainless Steel
Maximum Process & Ambient Temperatures
- -40° to 150° F / -40° to 65° C dry
- 32° to 160° F / 0° to 70° C glycerin filled
Operating Pressure
- Maximum 75 % of Full Scale Value
Overpressure Limit
- 25 % Over Full Scale Value
Accuracy
- ASME B40.100 (B40.1), Grade B ± 2 %, 1-1/2” (40 mm), 2 in (50 mm), 2-1/2” (63 mm) and 4 in (100 mm) LFSS
- Grade A ± 1 % for 4 in (100 mm) and 6 in (150 mm) LFSSW
