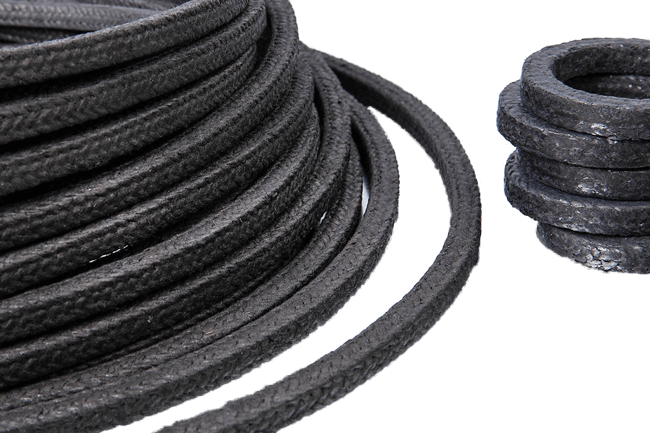

LATTYtex 2761 Graphited Synthetic Packing for Standard Applications with Rotary Machines
Brand: Latty International S.A.Packing made of special polyacrylic yarns. Each single yarn is impregnated with PTFE using our exclusive "Filcoat"-process.
The packing is then re-impregnated during braiding operation in a bath consisting of graphite mixed with special lubricants.
Available in preformed packing rings, on request. Graphited synthetic packing for standard applications with rotary machines.
Features- Easy running-in
- Little wear to sleeve
- Good resistance to moderately aggressive fluids
- Provides suppleness and resistance
- Cutting and fitting made easier
Specifications
Brand
Pressure
- 0 to 100 bar
- 0 to 10 MPa
- 0 to 1450 psi
Temperature
- -50° to 260° C
- -58° to 500° F
Speed
- < 15 m/s
pH
- 1 - 13
Fluids
- Slurry Fluids
- Food Processing
- Petrochemicals
- Pharmaceuticals
- Sugar
- Paper
- Power Stations
