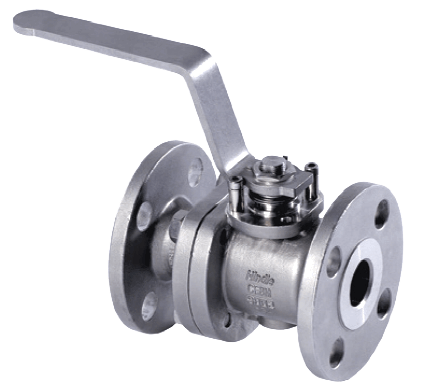

Hindle Model 300 Ultra-Seal Floating Ball Valve

Model 300 Ultra-Seal

Brand: Emerson Electric Co.
Add Product to My Catalog

  • Two-piece full bore design, flanged construction in carbon steel, stainless steel and special alloys.
  • Designed in accordance with ASME B16.34, BS EN ISO 17292 and ISO 14313/API 6D.
  • Floating ball design for bi-directional shut-off.
  • Flexing soft seat design for superior shut-off across a range of pressures with minimum operating torque.
  • Low temperature and cryogenic designs for service down to -196°C available on request.
  • Spring energized metal and carbon seat designs permitting tight shut-off and positive cavity pressure relief.
  • Fused hard nickel alloy, chrominum Carbide or Tungsten Carbide coated seat and ball designs for abrasive and high temperature service.
  • Hard carbon seat design for medium temperature application.
  • High integrity shaft seal minimizing the potential for atmospheric leakage.
  • Fugitive emission performance to BS EN ISO 15848-2 class A.
  • Corrosion resistant trim. Standard valves incorporate balls and shafts of stainless steel for long service life.
  • Fire test certified. All sizes and pressure ratings are covered by approved certification.
  • Anti-static and blow-out proof shaft design.
  • Most designs offer cavity pressure relief to upstream in event of thermal expansion.
  • Could be integrated into a SIL 3 environment safety instrumented system.

View_Details

Specifications

Brand

Direct Mount

  • Yes

Enclosure, Body Material

  • Aluminum Bronze
  • Carbon Steel
  • Duplex Stainless Steels

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - ASME Class 150
  • 1-1/2” (DN 40) - ASME Class 300

Flange Size - 1” (DN 25)

  • 1” (DN 25) - ASME Class 150
  • 1” (DN 25) - ASME Class 300

Flange Size - 1/2” (DN 15)

  • 1/2” (DN 15) - ASME Class 150
  • 1/2” (DN 15) - ASME Class 300

Flange Size - 2” (DN 50)

  • 2” (DN 50) - ASME Class 150
  • 2” (DN 50) - ASME Class 300

Flange Size - 3” (DN 80)

  • 3” (DN 80) - ASME Class 150
  • 3” (DN 80) - ASME Class 300

Flange Size - 3/4” (DN 20)

  • 3/4” (DN 20) - ASME Class 150
  • 3/4” (DN 20) - ASME Class 300

Flange Size - 4” (DN 100)

  • 4” (DN 100) - ASME Class 150
  • 4” (DN 100) - ASME Class 300

Flange Size - 6” (DN 150)

  • 6” (DN 150) - ASME Class 150
  • 6” (DN 150) - ASME Class 300

Flange Size - 8” (DN 200)

  • 8” (DN 200) - ASME Class 150
  • 8” (DN 200) - ASME Class 300

Port

  • Full

Temperature Range

  • -196° to 450° C (-321° to 842° F)

Valve Type

  • Manual

Documentation

Data Sheets

Catalogs
