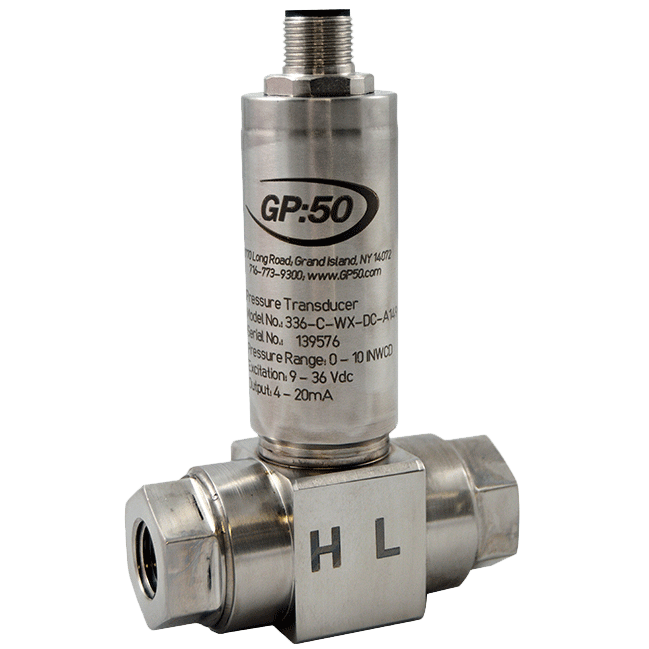

Model 336 Differential Pressure Transducer
Brand: GP:50 New York Ltd
Features
- Output Signal: 4-20 mA
- Supply Voltage: 8.0 to 32 Vdc
- Pressure Range: 0 to 500 psid (0.1 to 34.47 bar, 0 to 3,447 kPa)
- Burst Pressure: 5 times FSO
- Proof Pressure: 2 times FSO
- Electrical Connections: PTIH-10-6P
- Process Connection: 1/4" Female NPT
- Temperature Range:
- Operating: -40° to 104°C (-40° to 220°F)
- Storage: -40° to 121°C (-40° to 250°F)
- Ambient: -40° to 85°C (-40° to 185°F)
- Compensated: -1° to 77°C (30° to 170°F)
- Effect on Zero/Span: ±1.0% Full Scale Output at 100°F
- Static Accuracy: ±0.25% Full Scale Output
- Materials of Construction:
- Housing: 300 Series Stainless Steel
- Wetted Parts: 316 Stainless Steel
Specifications
Brand
Accuracy
- ± 0.25 % of Full Scale Output
Ambient Temperature Range
- -40° to 85° C (-40° to 185° F)
Burst Pressure
- 5 times Full Scale Output
Compensated Temperature
- -1° to 77° C (30° to 170° F)
Electrical Connectors
- Bendix PTIH-10-6P
Enclosure, Body Material
- 300 Stainless Steel
NPT Connection
- 1/4” NPT Female
Operating Temperature
- -40° to 104° C (-40° to 220° F)
Output
- 4-20 mA
Pressure Range
- bar: 0.1 to 35
- kPa: 7 to 3,447
- psid: 1 to 500
Proof Pressure
- 2 times Full Scale Output
Span & Zero Effect
- ± 0.5 % of Full Scale Output at 38° C (100° F)
Static Pressure
- 1000 psi (69 bar, 6,895 kPa)
Storage Temperature
- -40° to 121° C (-40° to 250° F)
Supply Voltage
- 8-32 Vdc
Wetted Materials
- 316 Stainless Steel
