Portable Sampling System
Brand: Gasmet TechnologiesThe Gasmet portable sampling system has been designed for portable emission monitoring measurements.

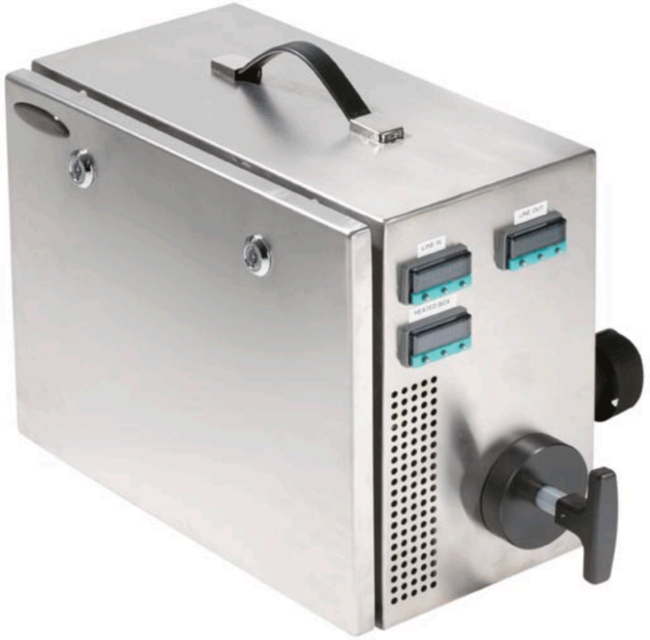

The Gasmet portable sampling system is used for on-site measurements. It can be used for measuring trace concentrations of pollutants in wet, corrosive gas streams. The sample gas can be measured undiluted and without drying since the sample pump, heated filter and valve are located in a module that is heated to 180° C. From the sampling system the gases can be directed into Gasmet FTIR gas analyzer.
The Gasmet portable sampling system includes power connections and temperature controllers for heated lines and heated module. The Gasmet portable sampling system is connected to an external PC through Gasmet FTIR gas analyzer and can be controlled by Calcmet software.
Specifications
Brand
Approvals & Certifications
- CE Label: EMI Guideline 89/336/EC
Consumption
- 400 to 3,600 W, Depending of the Sample Lines (without Sample Probe)
Diaphragm Material
- Teflon
Enclosure, Body Material
- 316 Stainless Steel
Operating Temperature
- 20° C (68° F) ± 20° C (± 68° F)
Power Supply
- 100-115 or 230 Vac 50/60 Hz
Storage Temperature
- -20° to 60° C (-4° to 140° F)
