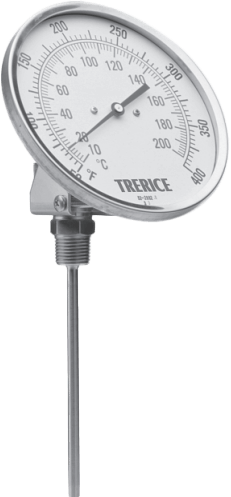

Adjustable Angle Series Bimetal Thermometer
Brand: Trerice Gauges & ValvesDirect Mounted thermometers with all stainless steel construction and hermetically sealed cases are designed for use in demanding industrial applications.
The Trerice Adjustable Angle Bimetal Thermometer can be configured to the most desirable viewing angle.
This instrument has a hermetically sealed, stainless steel case designed to withstand the rigors of industrial environments, while producing an accurate, responsive measurement.
Features- 3", 5" Dial Size
- ±1.0% Full Scale Accuracy
- Stainless Steel Case and Stem
- External Reset
Specifications
Brand
Model Dial Sizes
- B836: 3”
- B856: 5”
Case
- 300 Stainless Steel, Hermetically Sealed
Stem
- 300 Stainless Steel, 1/4” Diameter
Coil
- Bimetallic, Silicone Dampened on Ranges to 300° F (148° C), above 300° F not Dampened
Connection
- Adjustable Angle, 1/2” NPT
Window
- Double Strength Glass
Pointer
- Balanced, Black Finish
Dial Face
- Aluminum, White Background with Black and Blue Graduations and Markings
External Reset
- Yes
Accuracy
- ± 1.0 % Full Scale ASME B40.3 Grade A
Approximate Shipping Weight
- B836: 1.1 lbs (0.5 kg)
- B856: 1.5 lbs (0.68 kg)
