Product Series OS ET-487

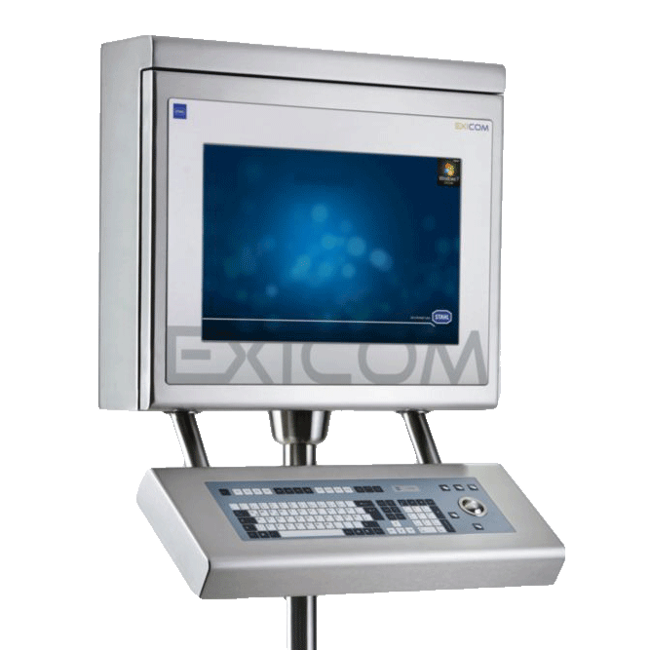

Operator Station OS ET-487

Brand: R. STAHL AG
Add Product to My Catalog

Product Series OS ET-487
The OS ET-487 HMI series includes Panel PC Operator Stations for zones 1, 2, 21, 22 and Division 2.

Their brilliant 24" WU widescreen displays with a resolution of 1920 x 1200 pixels (format 16:10) are available with or without touch screen.

The stainless steel enclosures (SS304 or SS316L) are available with a front opening or in cleanroom-compliant design and with different mounting options.

Accessories include country-specific keyboards, pointer instruments and RFID and barcode readers, and different memory sizes and SSDs complement the quad core processors.

Available data transmission technology: dual or single Ethernet as 10/100Base-TX via CAT7 up to 100 m, single Ethernet as 1000Base-SX via multimode fibre optic up to 550 m and single Ethernet as 1000Base-LX via single mode fibre optic up to 10 km.
Features
  • Panel PC Operator Station, quad core ATOM E3845, 24"WU display, 1920 x 1200
  • Zone 1, 2, 21, 22, stainless steel enclosure IP66, optional acc. to GMP
  • Optional resistive glass or foil touch screen

1 - 1 of 1 Part Numbers
ET487A
ET487A
R. STAHL Panel PC Series 400 Device Platform MANTA
Panel PC Operator Station, quad core ATOM E3845, 24"WU display, 1920 x 1200

Zone 1, 2, 21, 22, stainless steel enclosure IP66, optional acc. to GMP

Optional resistive glass or foil touch screen

Ambient Conditions

  • Ambient temperature operation - -20 °C … +55 °C
  • Ambient temperature operation 1 - -30 °C … +55 °C with heater version O30
  • Cold start temperature - -10 °C
  • Storage temperature - -30 °C … +70 °C
  • Temperature note 1 - The O30 version is only available for the AC version devices !
  • Temperature note 2 - Operating temperature +55 °C for a maximum of 5 h, for constant operation (24/7) +50 °C.
  • Temperature note 3 - Cold start temperature: If the HMI device is switched on at a temperature below -10 °C the display will need a certain amount of time to warm up until everything is clearly visible. Depending on how low the temperature is, this process may last up to 3 hours.
  • Temperature note general - The temperature details apply to a standard device combination with display, keyboard and enclosure. Any additional built-in or added components may have an impact on / change these.

Components

  • Keyboard - optional, 107 keys with trackball / joystick / mouse / touchpad (Ex ia)

Display

  • Backlight - LED Technology
  • Backlight service life - 50 000 h at +20 °C
  • Display brightness - 300 cd/m²
  • Display contrast - 1000:1
  • Display dimensions - 16:10
  • Display resolution - WUXGA
  • Display size centimetres - 61
  • Display size inch - 24
  • Display version - TFT Colour display
  • Display version 2 - 16.7 million colours
  • Front plate (display) - Aluminium
  • Total pixels - 1920 x 1200
  • Touch screen - optional, resistive
  • Touch screen technology - 5-wire glass or membrane touch

Electrical Data

  • Battery buffered - > 5 years
  • Capacitor buffered - at least 4 days
  • Connection compartment - Power supply direct in integrated Ex e connection box
  • Connections - via screw terminals, green
  • Data cable - CAT7 installation cable AWG 23
  • Data cable length - max. 100m
  • Data memory - 64 GB SLC 128 GB MLC
  • Ethernet / Data - 10/100Base-TX (Ex e)
  • Frequency range - 50 - 60 Hz
  • Graphics controller - integrated Intel Gen. 7 HD Graphics
  • Interface Audio - 1 x Audio line out (Ex e)
  • Interface medium - CAT7 Data transmission
  • Interface Serial - 1 x RS-232 (Ex e)
  • Interface USB - 2 x USB (Ex ia) 1 x USB (Ex e) 2 x USB (Ex ia) (keyboard, pointing device)
  • Language support - via Windows operating system
  • Max. input voltage Um - 250 VAC
  • Memory technology - SSD solid state flash drive
  • Operating system - Windows Embedded Standard 7 (64-Bit) Windows 7 Ultimate (64-Bit)
  • Power consumption AC 1 - 1 A
  • Power consumption DC - 3 A
  • Processor details - Intel Bay Trail (BT); 1.91 GHz; quad core
  • Processor type - ATOM E3845
  • Protection fuse AC - 5 AT
  • Protection fuse DC - 5 AT
  • RAM - 4 GB
  • Rated operational power - typ. 50 W / 100 W with O30 / max. 150 W (typ. 170 BTU / 341 BTU with O30 / max. 510 BTU)
  • Rated operational voltage AC - 230 V
  • Rated operational voltage DC - 24 V
  • Real-time clock - yes
  • Real-time clock data buffer - Lithium battery and capacitor buffered, maintenance-free
  • Voltage range AC - 100 - 240 V
  • Voltage range DC - 20 - 30 V
  • Wiring - flexible cable up to 2.5 mm² (AWG14) fixed cable up to 4 mm² (AWG12)
  • WLAN - optional via USB

Explosion Protection

  • Application range (divisions) - Class I, Division 2
  • Application range (zones) - 1 2 21 22
  • Certification ATEX - BVS 11 ATEX E 102 X
  • Certification CEC - 70011698
  • Certification EAC - TC RU C-DE.ГБ04.B00478
  • Certification IECEx - IECEx TUR 11.0075X
  • Certification KGS - 12-GA4BO-0617X
  • Certification NEC - 70011698
  • Certification note - The certificates and explosion protection markings apply to a standard device combination with display, keyboard and enclosure. Any additional built-in or added components may have an impact on / change these.
  • Certifications - ATEX, IECEx, NEC, CEC, EAC, KGS
  • Dust explosion protection ATEX - II 2(1) D Ex tb IIIC [ia op is Da] IP65 T110°C Db
  • Dust explosion protection EAC - Ex tb IIIC [ia op is Da] IP65 T110°C Db
  • Dust explosion protection IECEx - Ex tb IIIC [ia op is Da] IP65 T110°C Db
  • Explosion protection CEC - Ex e q [ia] IIC T4 Gb Class I, Division 2
  • Explosion protection KGS - Ex e q IIC T4 Ex tb IIIC IP64 T110°C Ex ia IIC T4 Ex ia IIIB T110°C
  • Explosion protection NEC - Class I, Zone 1 AEx e q [ia] IIC T4 Gb
  • Gas explosion protection ATEX - II 2(1) G Ex e q [ia op is Ga] IIC T4 Gb
  • Gas explosion protection EAC - 1Ex e q [ia op is Ga] IIC T4 Gb X
  • Gas explosion protection IECEx - Ex e q [ia op is Ga] IIC T4 Gb

General

  • Functional Description - The OS ET-487 HMI series includes Panel PC Operator Stations for zones 1, 2, 21, 22 and Division 2. Their brilliant 24" WU widescreen displays with a resolution of 1920 x 1200 pixels (format 16:10) are available with or without touch screen. The stainless steel enclosures (SS304 or SS316L) are available with a front opening or in cleanroom-compliant design and with different mounting options. Accessories include country-specific keyboards, pointer instruments and RFID and barcode readers, and different memory sizes and SSDs complement the quad core processors. Data is transmitted via Ethernet as 10/100Base-TX via CAT-7 cable up to 100 m.
  • Highlights - Panel PC Operator Station, quad core ATOM E3845, 24"WU display, 1920 x 1200 Zone 1, 2, 21, 22, stainless steel enclosure IP66, optional acc. to GMP Optional resistive glass or foil touch screen Data is transmitted via Ethernet as 10/100Base-TX via CAT-7 up to 100 m
  • HMI type - Operator station
  • Product description - 24" Panel PC
  • Product Description - Panel PC SERIES 400 Device platform MANTA
  • Product Type - OS ET-487-TX
  • Series - Product Series OS ET-487
  • Technology - Panel PC

HMI General

  • WebCode - ET487A

Mechanical Data

  • Breather - optional
  • Dimensions (WxHxD) - 740 mm x 872 mm x 400 mm
  • Ingress protection - IP 66
  • Keyboard note - With a keyboard with trackball, the operator station’s ingress protection is reduced to IP54, when the trackball is moved.
  • Material back - Stainless steel
  • Material front - Aluminium / stainless steel
  • Mechanical data note - The mechanical data apply to an FR enclosure with display and keyboard. Other enclosure types as well as any additional built-in or added components may have an impact on / change these.
  • Weight - 64.5 kg

Mounting / Installation

  • Enclosure type - Stainless steel enclosure (FR) optional clean room (CFR)
  • Mounting option - Wall, elbow, stand
