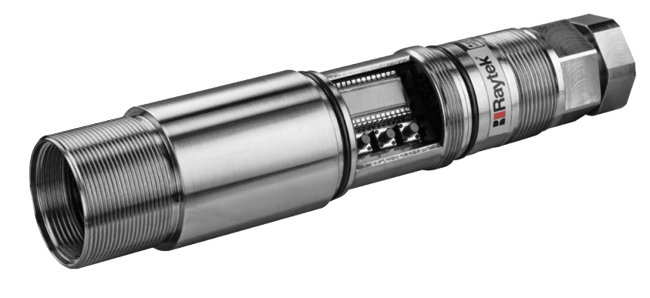

XR Noncontact Temperature Sensor
Brand: Raytek
Features
- Flexible user defined Analog output
- Multiple temperature ranges
- Local user-interface for sensor programming
- User-selectable 0/4-20 mA, 0-5 V, J or K thermocouple output
- User-scalable 0/4-20 mA or 0-5 V output
- Choice of field wiring or quick connector wiring option
- Laser-sighting and high resolution optics on LTH models
- Optional stainless steel housing
- Simultaneous Analog and digital outputs
- DataTemp® Multidrop software included
- Field Calibration software
Specifications
Brand
Accuracy
- ± 1 % of Measured Value or ± 1° C (2° F)
Alarm
- Opto-Coupled Contact Closure
Ambient Temperature Range
- 0° to 315° C (32° to 600° F)
Approvals & Certifications
- IEC 529
Communication
- RS-485
Enclosure, Body Material
- 316 Stainless Steel
- Aluminum - Anodized
Environmental Protection
- IP65
- NEMA 4
Humidity
- 10 to 95 % Relative Humidity
NPT Connection
- 1/8”-27 Male NPT
Output
- 0-20 mA
- 0-5 V
- J K Thermocouple
Power Requirement
- 100 mA, ± 20 %
- 24 Vdc
Repeatability
- ± 0.5 % of Measured Value or ± 0.5° C (1.0° F)
Resolution
- 0.5° C (1° F)
- 30:1 - Optical Resolution
- 33:1 - Optical Resolution
- 50:1 - Optical Resolution
Response Time
- 150 milliseconds
- 8 to 14 µm - Spectral Response
Shock
- 11 milliseconds
Storage Temperature
- -20° to 70° C (-4° to 158° F)
Temperature Range
- -40° to 1,650° C (-40° to 3,002° F)
Vibration
- 11 to 200 Hz
