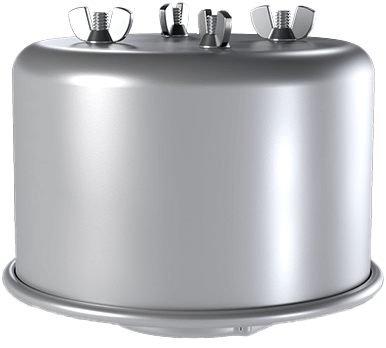

Series 670/6670 End-of-Line Deflagration Flame Arrester

Brand: Protectoseal Company

The Series 670/6670 Flame Arresters are designed to provide flame stopping protection for a tank’s vapor space when mounted to the end of a tank nozzle leading directly to atmosphere.

The arresters prevent a flame front generated by an unconfined deflagration occurring outside the tank from propagating into the vapor space.
Features
  • Sizes 1" through 4"
  • Listed by Underwriters Laboratories in 1" and 2” sizes
  • Suitable for use with vapors equivalent to NEC 500 Group D, IEC Group IIA
  • Vertically mounted, parallel plate-type flame arrester
  • Protects against fire
  • Minimizes pressure drop under normal operating conditions
  • Easy inspection and maintenance
  • Factory inspected prior to shipment
  • Available in Aluminum and Stainless Steel

Specifications

Approvals & Certifications

  • ATEX 94/9/EC
  • UL

Approvals & Certifications

  • ISO 16852

Enclosure, Body Material

  • 316 Stainless Steel
  • Aluminum

Flange Size - 1” (DN 25)

  • 1” (DN 25) - 125# (Flat Face)
  • 1” (DN 25) - 150# (Raised Face)
  • 1” (DN 25) - PN 16

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 125# (Flat Face)
  • 2” (DN 50) - 150# (Raised Face)
  • 2” (DN 50) - PN 16

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 125# (Flat Face)
  • 3” (DN 80) - 150# (Raised Face)
  • 3” (DN 80) - PN 16

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 125# (Flat Face)
  • 4” (DN 100) - 150# (Raised Face)
  • 4” (DN 100) - PN 16

NPT Connection

  • 1” NPT Female
  • 2” NPT Female
  • 3” NPT Female
  • 4” NPT Female
