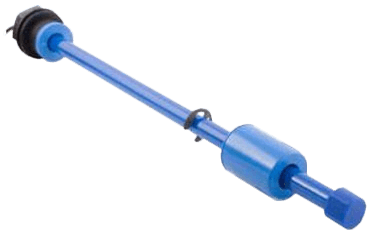

EVS312-21N Liquid Level Switch
Brand: American Sensor Technologies Inc
Features
- External Fitting
- Suitable for a Wide Range of Chemicals
- Repeatability of Operation
- Reed Switch Reliability
Specifications
Applications
- Alcohols
- Diesel Fuel
- Fuel Low Level
- Low Oil Detection
- Organic Solvents
Cable Length
- 5 feet (1.5 metres)
Cable Material
- PVC
Cable Type
- Stripped Cables
Electrical Connectors
- 18 AWG, 16 / 0.025 mm
Electrical Contacts
- Reed Contact
Electrical Rating
- 0.28 A / 125 Vac / 5 W
- 0.4 A / 175 Vdc / 5 W
Enclosure, Body Material
- Nylon 6.6 - Float
Environmental Protection
- IP65
Fluid Specific Gravity
- 0.74 - Float SG
Materials of Construction
- Ruthenium - Contact Material
Maximum System Pressure
- psi: 68 (kPa: 470, bar: 4.7)
Media
- Fuel
- Oil
Metric Connection
- M16
Mounting
- Fitment: External
Mounting Position
- Vertical
Operating Temperature
- -30° to 110° C (-22° to 230° F)
Sensor, Probe Diameter
- 0.8” (22 mm)
Sensor, Probe Style
- Float
Shock
- 50 G, 11 milliseconds
Stem Length
- 8.8” (223.5 mm)
Switch Type
- SPST
Vibration
- 35 G at 500 Hz
- Fuel low level
- Diesel Fuel
- Low Oil Detection
- Alcohols
- Organic Solvents
