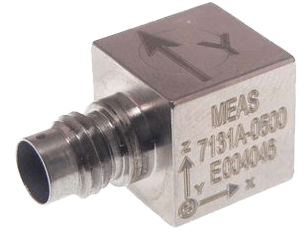

7131AT Plug & Play Accelerometer
Brand: American Sensor Technologies Inc
The Model 7131AT is a miniature triaxial IEPE accelerometer available in ±50 to ±2,000 g dynamic ranges.
The accelerometer features a hermetically sealed Titanium construction with a 4-pin Microtech connector interface and is TEDS 1451.4 compliant. The model 7131A incorporates stable piezo-ceramic crystals in annular shear mode which provide a flat frequency response up to >10 kHz.
Features- 4-pin Connector Interface
- Wide Bandwidth up to 10 kHz
- TEDS 1451.4
- Miniature Triaxial
- Annular Shear Mode Crystals
- Stable Temperature Response
- Isolated Case Option
1 - 12 of 20 Part Numbers
7131AT12
- Range - ± 100 G
- Electrical Connection - 4-Pin Receptacle
7131AT12-01
- Range - ± 100 G
- Electrical Connection - M2.5 x 0.45 6 G
7131AT12-02
- Range - ± 100 G
- Electrical Connection - 5-40 UNF-2B
7131AT12-03
- Range - ± 100 G
- Electrical Connection - Case Isolated
7131AT22
- Range - ± 200 G
- Electrical Connection - 4-Pin Receptacle
7131AT22-01
- Range - ± 200 G
- Electrical Connection - M2.5 x 0.45 6 G
7131AT22-02
- Range - ± 200 G
- Electrical Connection - 5-40 UNF-2B
7131AT22-03
- Range - ± 200 G
- Electrical Connection - Case Isolated
7131AT23
- Range - ± 2,000 G
- Electrical Connection - 4-Pin Receptacle
7131AT23-01
- Range - ± 2,000 G
- Electrical Connection - M2.5 x 0.45 6 G
7131AT23-02
- Range - ± 2,000 G
- Electrical Connection - 5-40 UNF-2B
7131AT23-03
- Range - ± 2,000 G
- Electrical Connection - Case Isolated
1 - 12 of 20 Part Numbers
Specifications
Accuracy
- ± 1 % of Full Scale Output - Non-Linearity
Approvals & Certifications
- CE
- RoHS
Bandwidth
- 10 kHz
Current
- 2-10 mA - Excitation Current
Electrical Connectors
- 4-Pin Receptacle
Enclosure, Body Material
- Titanium
Frequency
- 0.5 to 11,000 Hz - Frequency Response
- 1 to 9,000 Hz - Frequency Response
- 43,000 Hz - Natural Frequency
Load Impedance
- < 100 ohms - Output Impedance
Metric Connection
- M2.5 x 0.45 6 G Male
Mounting
- Adhesive
- Stud Mount
NACE & NIST
- NIST Traceable Amplitude Calibration from 20 Hz to ± 2 dB Frequency Response Limit
Operating Temperature
- -55° to 125° C (-67° to 257° F)
Output
- ± 5 V - Full Scale Output Voltage
- 18-30 Vdc - Compliance Voltage
Output Noise
- 0.0004 to 0.0032 G RMS - Residual Noise
Response Time
- Discharge Time Constant: 0.8 to 1.2 seconds
Sensitivity
- < 5 % - Transverse Sensitivity
- 2.5-100 mV/g
Shock
- 5,000 G - Shock Limit
Storage Temperature
- -55° to 125° C (-67° to 257° F)
Supply Voltage
- 6-13 Vdc - Bias Voltage
UNF/UNC Connection
- 5-40 UNF-2B Male
- General-purpose Usage
- High Frequency Applications
- Laboratory Testing
- Modal Applications
- Stress Screening
- Vibration & Shock Monitoring
