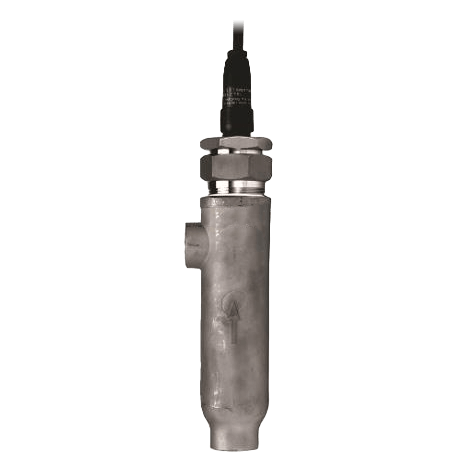

Yokogawa Conductivity Detector, SC8SG

SC8SG Conductivity Detector

Brand: Yokogawa Electric Corporation
Add Product to My Catalog

YOKOGAWA has been supplying superior on-line analyzers for monitoring or controlling the conductivity of liquid or solutions.

Now, YOKOGAWA provides the four-wire conductivity converter, (SC450G), the two-wire conductivity transmitter (FLXA202/FLXA21, SC202).

YOKOGAWA also provides many kinds of detectors/ sensors for accurately measuring liquid conductivity when using converters/transmitters.

The combination of YOKOGAWA’s converters/ transmitter and detectors/sensors meets the demanding ultra pure water requirements of the growing semiconductor and pharmaceutical markets in addition to traditional water quality measurements for standard power plant and chemical applications.

View_Details

Specifications

Brand

BSP Connection

  • 1/2” BSPT Female

Cable Length

  • 18.04 to 65.61 feet (5.5 to 20 metres)

Electrical Connectors

  • Fork Terminal
  • M3 Ring Terminal
  • M4 Ring Terminal
  • Pin Terminal

Flange Size - 1/2” (DN 15)

  • 1/2” (DN 15) - 150# ANSI
  • 1/2” (DN 15) - JIS 10K

Flange Type

  • Flat Face (FF)
  • Raised Face (RF)

Flow Rate

  • < 20 L/minute - for Flow through Detectors

Maximum System Pressure

  • psi: 145 (kPa: 1,000, bar: 10)

Measuring Range

  • 0-0.5 to 0-100 μS/cm - for a Cell Constant 0.01 cm⁻¹
  • 0-1 to 0-1,000 ms/cm - for a Cell Constant 10 cm⁻¹

Media

  • Liquids

NPT Connection

  • 1/2” NPT Female

Principle of Operation

  • 2-Electrode System
  • 4-Electrode System

RTD Type

  • Pt1000

Sensor, Probe Material

  • 316 Stainless Steel - Two-Electrode Sensor (Cell Constant: 0.01 cm⁻¹)
  • Ethylene Chloride Trifluoride - Two-Electrode Sensor (Cell Constant: 0.01 cm⁻¹)
  • Glass - Four-Electrode Sensor (Cell Constant: 10 cm⁻¹)
  • Graphite - Two-Electrode Sensor (Cell Constant: 10 cm⁻¹)
  • Platinum - Four-Electrode Sensor (Cell Constant: 10 cm⁻¹)
  • PVDF (Polyvinylidene Difluoride) - Four-Electrode Sensor (Cell Constant: 10 cm⁻¹)
  • Reinforced Epoxy Resin - Two-Electrode Sensor (Cell Constant: 10 cm⁻¹)

Sensor, Probe Type

  • RTD

Stem Material

  • Polypropylene Resin - Stem (Flow-Through Typical)
  • SCS14 - Stem & Chamber Flow-Through Typical

Temperature Range

  • 0° to 100° C (32° to 212° F)

Wetted Materials

  • 316 Stainless Steel - Sensor-Holding Base
  • Fluororubber - Sensor-Holding Base
  • Polypropylene (PP) - Sensor Holding Base, Chamber

Documentation

Product Manuals

Product Drawing

Specification

Technical Information
