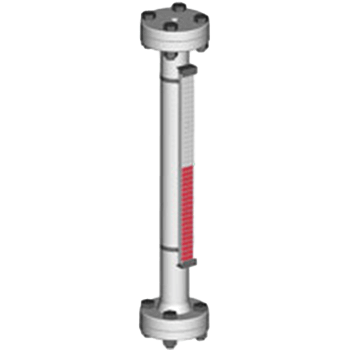

Type 34300-B Standard Range 28 Series Magnetic Level Indicator

Brand: Trimod Besta

For pressures up to psi: 406 (kPa: 2,800, bar: 28) and maximum 400° C (752° F), viscosity maximum 600 cSt.

Specifications

Brand

Approvals & Certifications

  • Float Chamber Material: EN 10204: 2004-3.1 Certificate

BSP Connection

  • G 1/2” Female (ISO 7-1/ISO 228-1)

Density Range

  • ≥ 0.55 g/cm³

Distance

  • Connecting Distance: 220.5” (5,600 mm)

Environmental Protection

  • IP54
  • IP65
  • IP68

Gasket Material

  • Fiber Compound Aramid
  • Graphite Including Reinforcing Net in 316, 316L Stainless Steel at < 400° C (752° F)
  • NBR
  • Pure PTFE, Non-Reinforced

Materials of Construction

  • Float Chamber, Damping Spring Top & Bottom: 316 Stainless Steel, 1.4401
  • Float Chamber, Float: 316L Stainless Steel
  • Float: Titanium Alloy
  • Indication Rail: Aluminum
  • Indication Rail: Glass
  • Indication Rail: Polycarbonate

Nut & Bolt Material

  • Screws & Nuts: A2-70 Stainless Steel (ISO 3506)

Operating Pressure

  • psig: 406.1 (kPa: 2,800, barg: 28) - Max.

Operating Temperature

  • -100° to 400° C (-148° to 752° F)

Sensor, Probe Style

  • Float

Viscosity

  • ≤ 600 cSt
