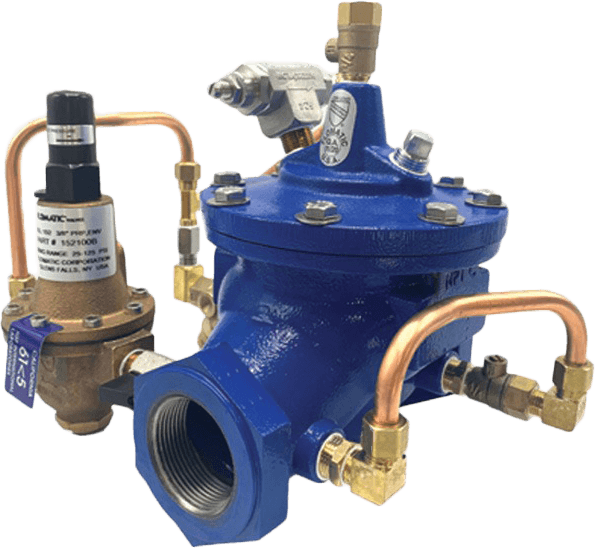

CYCLE GARD® II CN101/CNA101 - Pressure Pump Control Valve
Brand: Flomatic CorporationCycle Gard® Constant Pressure Pump Control Valves automatically regulate downstream pressure and provides a constant pressure regardless of the system water flow demand until the demand on the system is no longer required.
Depending on the valve model, an internal or external by-pass allowing the system pressure to slowly rise under low demand and fill the tank.
When the pressure switch setting is reached, the pump shuts off. Cycle Gard® valves prevent the pump from short cycling which allows for a smaller pressure tank.
Features- Maintains a constant pressure
- Stops pump from short cycling
- Hydraulically operated (no electricity required)
- Extends pump motor life
- Eliminates effects of water hammer
- More compact system
- Ease to install
- Field adjustable
- Downsize the tank
- Provides more efficient use of appliances
- 3 year warranty
Specifications
Brand
Size Range
- 1-1/4" to 8"
- 32 mm - 200 mm
Maximum Temperature
- 180° F (80° C)
Maximum Pressure
- 400 psi
Documentation
Data Sheets
- Control Valve - 150# Flange Model C 16" Data Sheet pdf
- Control Valve - 150# flange Model CA 2-1/2" & 3" Data Sheet pdf
- Control Valve - 150# Flange Model CA 6" Data Sheet pdf
- Control Valve - 150# Flange Model CF 8" Data Sheet pdf
- Control Valve - NPT Model C101N 1-1/2" & 2" Data Sheet pdf
- Control Valve - NPT Model CA 1-14" & 1-1/2" Data Sheet pdf
- Control Valve - NPT Model CFA 2-1/2" & 3" Data Sheet pdf
