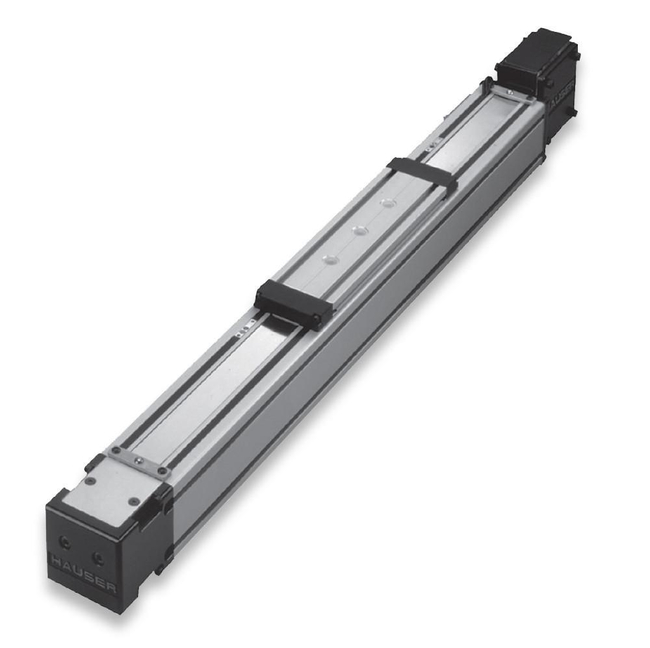

HLE Series - LEB150 Belt Driven, Roller Wheel, All-Purpose Rodless Linear Actuator
Brand: Parker HannifinThe HLE series 'all-purpose' linear actuator offers an appropriate solution for all motion tasks and is ideal for use as a single-axis or as a component in a multiple-axis gantry system.
It has been developed for rapid linear movements over long stroke distances, providing a simple machine and system element that can be used without the need for any specialized knowledge - installation and setup only requires a small amount of effort from the user.
The HLE carriage is rigidly supported on three sides by heavy duty, polyamide roller wheels housed inside of a rugged aluminium housing.
The bearing wheels are pre-loaded to eliminate play in the system and strategically located along the carriage to evenly distribute load across the length of the carriage.
The HLE linear actuator utilises a high strength, steel reinforced belt and pulley drive train that provides fast, highly repeatable positioning of the carriage.
The mounting of the belt to the carriage is designed to enable easy replacement of the belt without the need to remove the payload, while simultaneously providing a very rigid connection.
The drive pulley assembly is designed to accept planetary gearheads as well as a wide variety of servo and stepper motors.
The HLE is available in many different configurations, with numerous options and accessories - with thousands of units in operation worldwide, the HLE is truly a proven performer in its ability to offer long-life and trouble free operation.
Features- Profile Width : 150 mm
- Maximum Load Capacity : 5900 N
- hrust Forces : up to 1350 N
- Travel Lengths : up to 9.1 m (single profile) / 17 m with profile splicing (consult factory)
- Speeds : up to 5 m/s • Accelerations : up to 10 m/s²
- Typical Repeatability : ± 0.05 mm (for travel lengths up to 3m) / ± 0.1 mm (for travels lengths over 3m)
- Plastic Guiding Rollers - suitable for clean operation (travel surface is free of lubricants), low maintenance
- Rugged Construction - for heavy duty applications
- Timing Belt and Pulley Drive Mechanism - for fast, accurate positioning
- Steel Strip Cover - for additional environmental protection
- Suitable for Cleanroom Applications - low wear and low particle generation
- Stainless VA / Corrosion Resistant Version - for use in cleanroom applications, or in the food industry
- Dual-Axis and Idler Unit Options Available
- T-slot Mounting along actuator body and carriage
Specifications
Brand
Additional Protection Option
- Steel Strip Cover
Bearing Type
- Roller Wheel - Polyamide
Corrosion Resistant Option
- Yes
Drive Type
- Belt
Idler Unit Option
- Yes
Linear Feedback Device
- No
Maximum Acceleration (Inch/S2)
- 393
Maximum Acceleration (m/S2)
- 10
Maximum Payload FZ (N)
- 5900 (Extended Carriage)
Maximum Speed (inch/sec)
- 197
Maximum Speed (m/sec)
- 5
Maximum Stroke (inch)
- 324 (Single Profile) / 787 (Max. by Splicing)
Maximum Stroke (mm)
- 8230 (Single Profile) / 17000 (Max. by Splicing)
Maximum Thrust FX (Lbs)
- 303
Maximum Thrust FX (N)
- 1350
Position Repeatability (± Inch)
- 0.002 (up to 118”) / 0.004 (118” & above)
Position Repeatability (± mm)
- 0.05 (up to 3 m) / 0.1 (3 m & above)
Profile Width (mm)
- 150
Series
- HLE
Typical Payload FZ (N)
- 1500
- Handling Technology : palletizing, material feed and removal
- Textile Machine Construction : cross-, length cutting and stacking, quilting, seaming
- Process Engineering : varnishing, coating, gluing, engraving
- Stock Technology : commissioning, stock keeping, automated retrieval
- Construction : encasing, inserting steel reinforcements into concrete
- Clean Rooms : wafer transport, wafer coating
- Machine Tool Manufacturing : charging of the work pieces, changing the tools
- Automated Testing Technology : guiding of ultrasonic sensors
