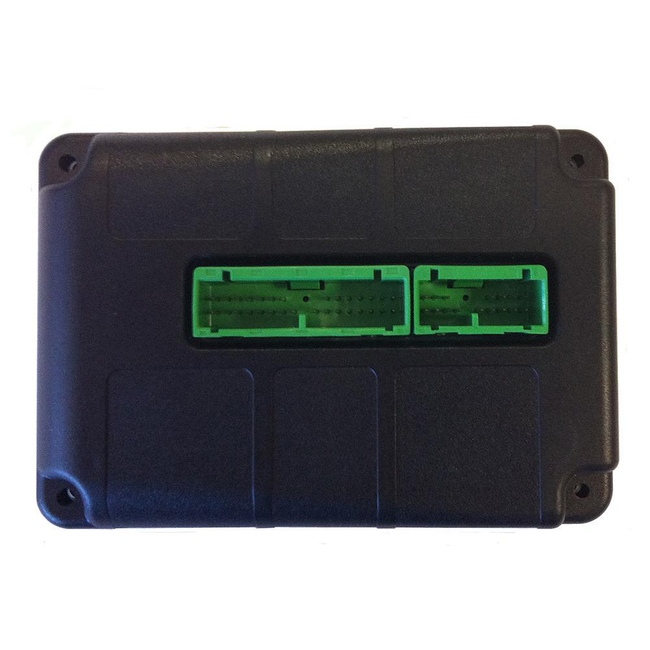

J1939 Slave Controller Module - CM2904
Brand: Parker HannifinParker’s CM2904 controller module is a compact J1939 slave unit that has pre-loaded standard software.
The CM2904 module reports input status and receives output commands from a master using J1939 protocol over a CAN bus connection.
Specifications
Brand
Approvals & Certifications
- 2004/108/EC
Communication Interface
- 2 x CAN (J1939)
Controller Type
- Slave / Expansion Module
Electrical Connectors
- JAE
Housing Material
- Plastic
IP Protection Rating
- 54
Markets
- Agriculture, Construction, Forestry, Material Handling, Specialty, Transportation
Number of Inputs
- 29
Number of Outputs
- 4
Output Current Rating (A)
- 2
Power Supply
- 12/24
Software
- Preconfigured
Voltage (Vdc)
- 9-32
Working Temperature (°C) Maximum
- 85° C
Working Temperature (°C) Minimum
- -40° C
