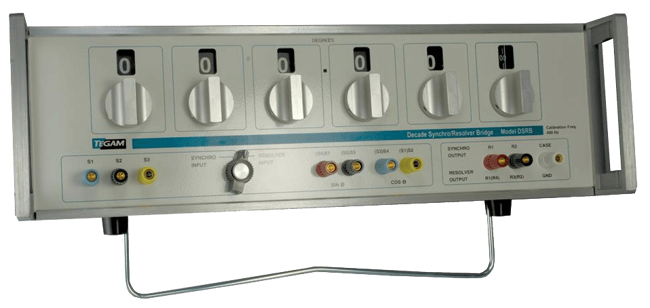

DSRB-5CDA-4 Decade Synchro Resolver Bridge
Brand: TegamThe TEGAM DSRB combines the functions of a decade synchro bridge and a decade resolver bridge into a single unit.
A front panel switch changes the unit from one mode of operation to the other.
The units are designed for testing control transmitters, differentials (rotors), and torque transmitters as components or for simulating an incremental control transformer in a servo loop.
Features- 100° Increment Switching to Simulate Operation Over a Full 360°
- Selective Output
- No Warm-up Time
- Age or Environmental Conditions Have Little Effect.
- Switches Good for 100,000 Turns
Specifications
Brand
Accuracy
- 4 seconds of Arc at Nominal Frequency - Angular Accuracy
Display
- 0.375” High Digits
Electrical Connectors
- 5-Way Binding Posts
Frequency
- 400 Hz ± 5 % - Nominal Frequency
Input
- 170 Vrms or 0.35f (f in Hz) whichever is less - Nominal Input Voltage
- 170 Vrms, Max.
Input Impedance
- 1 Megaohm at Nominal Frequency - Synchro Mode
- 750,000 ohms at Nominal Frequency - Resolver Mode
Output Load
- 300-j50 - Output Impedance
Resolution
- 0.0001° - Angular
Rotation
- 0° to 400° - Angular Range
