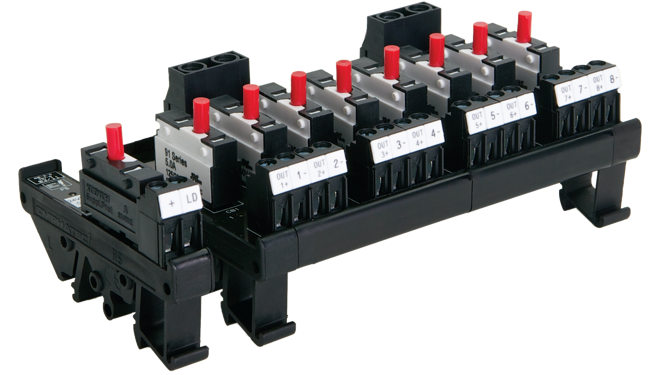

SIGNEXT-CBM Circuit Breaker Module.png

SIGNEXT-CBM Circuit Breaker Module

Brand: Emphatec
Add Product to My Catalog

The SIGNEXT-CBM family of circuit breaker modules include single and eight channel versions. The eight channel units have a single input so the module provides power distribution as well.

Modules are available for 24 Vdc and 120-230 Vac applications and the current ratings range from 0.5 to 5 A. The circuit breaker is a supplemental device with manual reset. They cannot be tripped manually. Each channel has a status LED – in the case of the single channel versions the LED provides tripped breaker indication (on when the breaker is open) while the LEDs provide breaker set indication (on when the breaker is closed) on the eight channel units.

The reason for this configuration of the single channel units is to make it interchangeable with fuse terminal blocks.
Features
  • Single and eight channel supplemental circuit breaker modules

  • 24 Vdc and 120-230 Vac versions

  • Status LED

  • cULus approved

    • 1 - 1 of 1 Part Numbers
    SIGNEXT-CBM
    SIGNEXT-CBM
    • Channel - 1 Channel, 0.5A
    1 - 1 of 1 Part Numbers

    Specifications

    Brand

    Ambient Temperature Range

    • -20° to 40° C (-4° to 104° F)

    Approvals & Certifications

    • CSA 22.2 No.14
    • UL (C,US) UL 508

    Electrical Rating

    • Interrupting Current: 1,000 A
    • Interrupting Current: 200 A

    Indication

    • LED

    Storage Temperature

    • -20° to 50° C (-4° to 122° F)

    Termination

    • 26 to 10 AWG
    • 26 to 12 AWG

    Torque

    • 0.5 to 0.6 Nm

    Voltage

    • 120-230 Vac
    • Nominal: 24 Vdc
