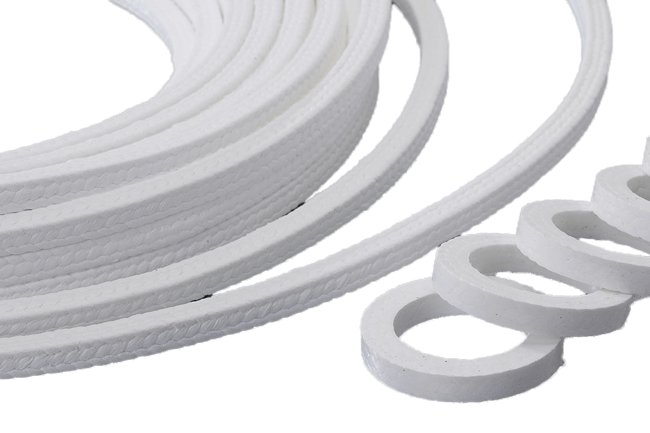

LATTYflon 3206 S PTFE Packing for Static Applications
Brand: Latty International S.A.Packing made of 100% PTFE silk yarns, each single yarn being impregnated with PTFE using our exclusive "Filcoat"-process.
The packing is then re-impregnated with a PTFE mix during braiding operation.
Available in preformed packing rings, on request.
The chemical inertness of PTFE in static applications.
Features- Very Low Friction Coefficient
- Perfect Chemical Inertness
- Dry Packing
Specifications
Brand
Pressure
- 0 to 300 bar
- 0 to 30 MPa
- 0 to 4351 psi
Temperature
- -200° to 300° C
- -328° to 572° F
Speed
- < 5 m/s
pH
- 0 to 14
Fluids
- Slurry Fluids
Composition
- PTFE
- Chemical
- Pharmaceutical
- Food-Processing
