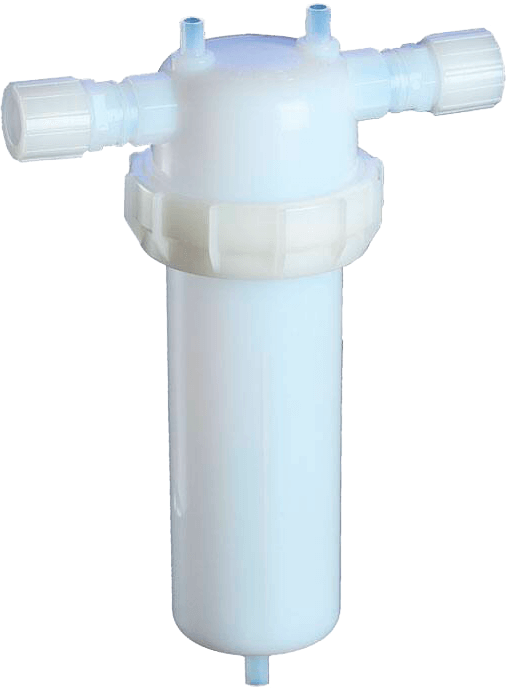

Trufluor Plus Single Cartridge Filter Housing
Brand: Domnick Hunter - by ParkerThe Trufluor Plus™ single cartridge filter housing is designed for maximum chemical resistance and high-purity for microelectronics liquid filtration applications. Constructed of PFA (wetted parts) and PVDF (non-wetted parts), this housing is compatible with the most aggressive chemistry.
The high-purity materials of construction and cleanroom packaging insure a high level of cleanliness. The housing consists of a stationary bowl and locking ring that provides a positive seal and easy filter replacement.
It is compatible with our Fluoroflow® line of all-fluoropolymer filter cartridges including the large-diameter Fluoroflow-XL in lengths of 10, 20 and 30 inches.
Features- Excellent chemical resistance
- High-purity construction
- Packaged in cleanroom
- High flow rates
- Compatible with 2.75” and 3.25” diameter filter cartridges
Specifications
Industry
- Microelectronics
- Industrial
Function
- Clarification
- Prefiltration
- Polishing
Media
- PFA
Filter Construction
- Single Cartridge Filter Vessel
Materials of Construction
- PFA
Specifications Met
- Non-ASME Code
Kits Included
- 1 Cartridge
Maximum Operating Pressure
- 50 psig / 3.4 bar (@ 194° F)
- 100 psig / 6.9 bar (@ 77° F)
- Wet etch and clean filtration (90°C or less)
- Photochemicals filtration
- DI water filtration
